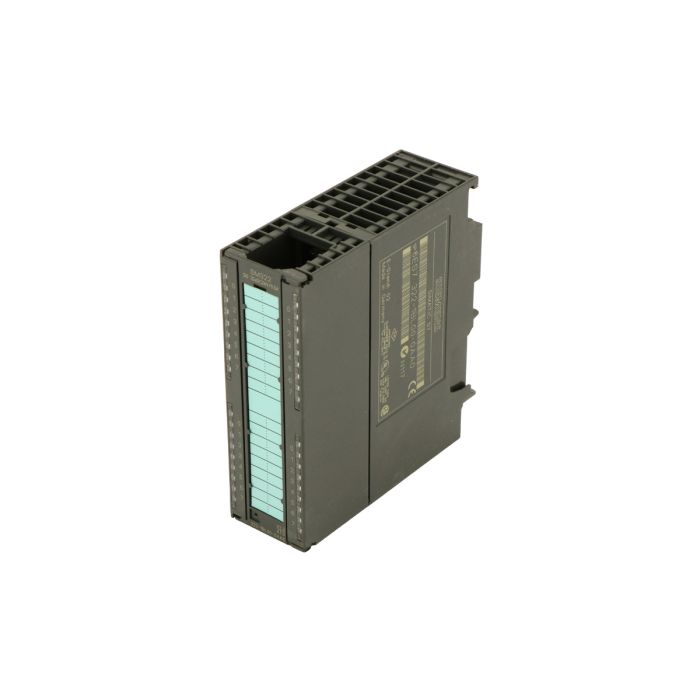

Siemens 6ES7322-1BL00-0AA0 SIMATIC PLC Module 6ES73221BL000AA0

Description:

The Siemens 6ES7322‑1BL00‑0AA0 SIMATIC PLC Module (also referenced as 6ES73221BL000AA0) is a digital input signal module used in SIMATIC S7‑300 automation systems to receive and process discrete field input signals. It is installed in industrial control panels and PLC racks where reliable acquisition of discrete status signals is required. Maintenance teams and system integrators use this module for replacement, retrofit, and system expansion to ensure accurate and dependable input monitoring.

Applications:

The Siemens 6ES7322‑1BL00‑0AA0 module is used in industrial automation to interface sensors, switches, pushbuttons, and safety devices with PLC control logic. It is deployed in manufacturing lines, packaging systems, conveyor controls, machine tools, and process plants to capture 24 V DC input signals that represent field device states. The module supports fast and robust input detection for sequencing, safety interlocks, and control decisions in automated systems.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6ES7322‑1BL00‑0AA0
• Alternate Reference: 6ES73221BL000AA0
• Product Type: Digital Input Module (SM 322)
• PLC Platform: SIMATIC S7‑300
• Number of Inputs: 16 discrete digital inputs
• Input Voltage: 24 V DC
• Input Type: Positive logic (PNP)
• Input Current: ~2–3 mA per channel
• Response Time: Standard industrial digital input response
• Indicators: LED status per input channel
• Mounting: PB‑bus rack installation in S7‑300 system
• Protection Rating: IP20 (module enclosure)
• Operating Temperature: Industrial specification range
• Application: Acquisition of discrete field signals for PLC control

Common Replacements:

• Siemens 6ES7 322‑1BL01‑0AA0
• Siemens 6ES7 322‑1BH01‑0AA0
• Siemens 6ES7 322‑1BL00‑0AB0
