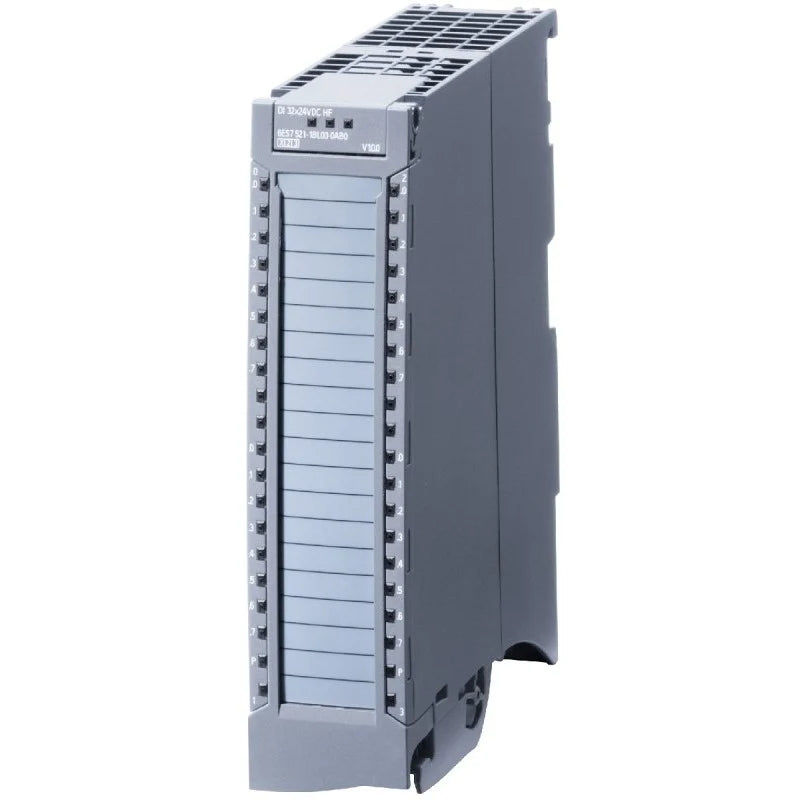

Siemens 6ES7521-1BL00-0AB0 PLC Module 6ES75211BL000AB0

Description:

The Siemens 6ES7521-1BL00-0AB0 digital input module is used in SIMATIC S7-1500 PLC automation systems. Commonly installed in industrial control panels, high-speed production lines, and machine automation systems. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and digital input expansion.

Applications:

The Siemens 6ES7521-1BL00-0AB0 PLC module is used in manufacturing plants, automotive assembly lines, food and beverage processing systems, material handling equipment, and industrial automation environments to interface digital field signals such as sensors and switches with centralized PLC control systems, ensuring accurate monitoring and control of discrete inputs.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6ES7521-1BL00-0AB0
• Product Type: Digital Input Module (SM 521, S7-1500)
• Input Channels: 32 digital inputs (2 groups of 16)
• Input Voltage: 24 V DC (20.4–28.8 V range)
• Input Type: Type 3 (IEC 61131)
• Input Delay: Configurable 0.05 ms to 20 ms
• High-Speed Counters: 2 channels (up to ~6 kHz)
• Input Current: Approx. 2.5 mA per channel
• Diagnostics: Integrated diagnostics and hardware interrupts
• System Compatibility: SIMATIC S7-1500 / ET 200MP
• Mounting: DIN rail with front connector (sold separately)
• Dimensions: Approx. 147 × 35 × 129 mm

Common Replacements:

• Siemens 6ES7521-1BH00-0AB0
• Siemens 6ES7521-7EH00-0AB0
• Siemens 6AG1521-1BL00-7AB0
