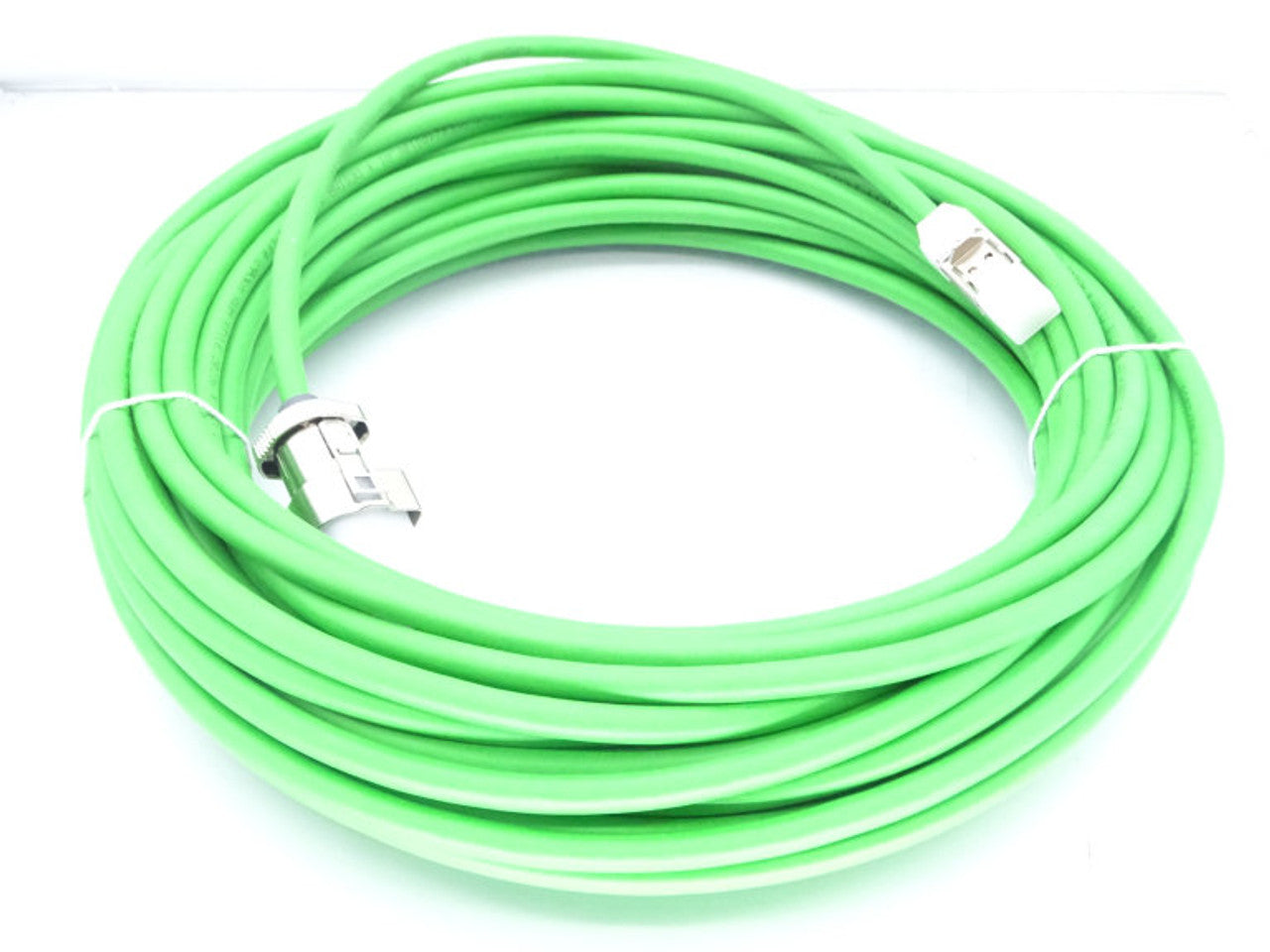

Siemens 6FX8002-2DC10-1CA0 Encoder Cable 20M 6FX80022DC101CA0

Description:

The Siemens 6FX8002-2DC10-1CA0 encoder cable is used in SINAMICS drive and motion control systems. Commonly installed in servo motors, CNC machines, and industrial automation systems requiring encoder feedback connections. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and reliable signal transmission between encoder and drive.

Applications:

The Siemens 6FX8002-2DC10-1CA0 encoder cable is used in industrial automation environments such as machine tools, robotics, packaging systems, and conveyor systems to provide secure and interference-resistant transmission of encoder signals between motors and drive controllers, ensuring precise positioning, speed control, and reliable motion feedback.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6FX8002-2DC10-1CA0
• Product Type: Encoder Signal Cable (DRIVE-CLiQ, MOTION-CONNECT 800PLUS)
• Cable Length: 20 meters
• Cable Type: Pre-assembled signal cable
• Communication Interface: DRIVE-CLiQ
• Connector Type: RJ45 (module side, IP20) / motor connector (IP67)
• Voltage Supply: 24 V via DRIVE-CLiQ
• Cable Diameter: Approx. 7.1 mm
• Protection Rating: IP20 (control side), IP67 (motor side)
• Max Cable Length Support: Up to 75 m (series dependent)
• Application Compatibility: SINAMICS drives and motion control systems
• Mounting: Plug-and-play connection between drive and motor

Common Replacements:

• Siemens 6FX8002-2DC10-1CH0
• Siemens 6FX8002-2DC10-1CE0
• Siemens 6FX8002-2DC10-1BD0
