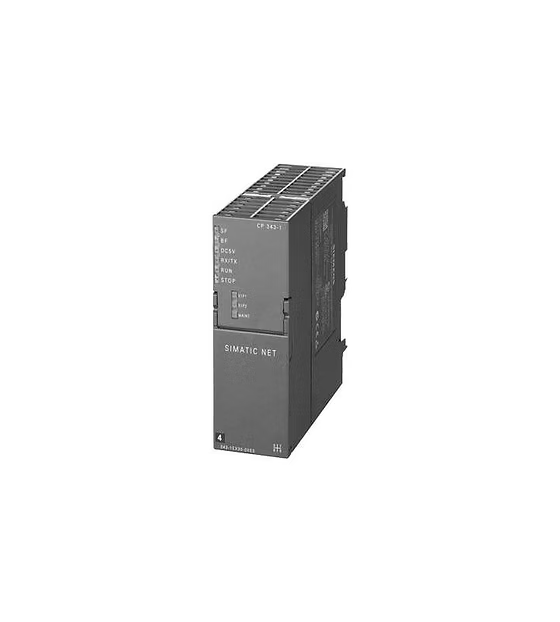

Siemens 6GK7343-1EX30-0XE0 Communication Processor 6GK73431EX300XE0

Description:

The Siemens 6GK7343-1EX30-0XE0 communication processor is used in industrial automation systems to provide network communication between PLCs and Ethernet/IP, PROFIBUS, or PROFINET networks. Commonly installed in SIMATIC S7-300/S7-400 PLC racks to enable remote I/O, diagnostics, and integration with HMIs, SCADA systems, and engineering tools. Maintenance teams and system integrators use this processor for networking upgrades, distributed architecture, and replacement of outdated communication modules.

Applications:

The Siemens 6GK7343-1EX30-0XE0 processor is widely used in factory and process automation requiring robust Ethernet communications and network integration. It is commonly found in assembly lines, material handling systems, process plants, building automation, and remote monitoring architectures where Ethernet communication between controllers, supervisory systems, and field devices is essential for real-time data exchange and diagnostics.

Technical Specifications:

• Model: 6GK7343-1EX30-0XE0
• Type: Communication Processor (CP) for SIMATIC S7 PLCs
• Supported network protocols: PROFINET, TCP/IP, UDP/IP, ISO on TCP
• Ethernet ports: 2 × RJ-45 10/100 Mbps
• PROFINET class: Conformance class B (CC-B)
• Interfaces: MPI/DP via PLC backplane
• Mounting: Rack-mount for S7-300/400 series
• Diagnostics: LED indicators for Link/Activity/Status
• Communication functions: Routing, message access, remote I/O, Industrial Ethernet
• Compatibility: SIMATIC S7-300 / S7-400 systems
• Power: Supplied via PLC backplane
• Network distance: Standard Ethernet cabling (Cat5/6)
• Designed for: Industrial communication between controllers, supervisory, and networked devices

Common Replacements:

• Siemens 6GK7343-1EX31-0XE0
• Siemens 6GK7343-1EX30-0XE1
• Siemens 6GK7343-1GX30-0XE0
