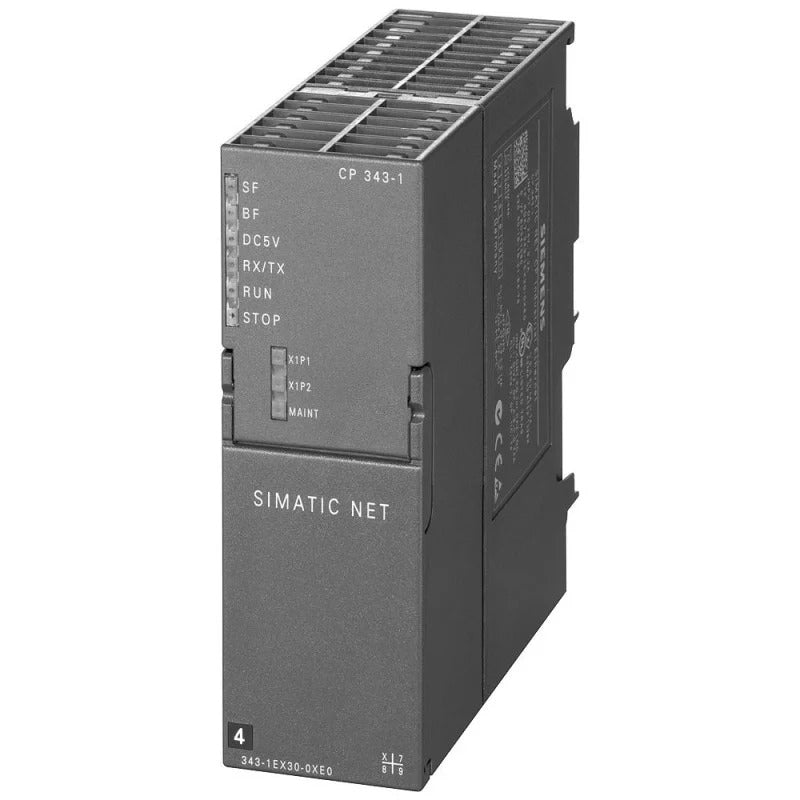

Siemens 6GK7343-1EX30-0XE0 SIMATIC PLC 6GK73431EX300XE0

Description:

The Siemens 6GK7343‑1EX30‑0XE0 SIMATIC CP 343‑1 communication module is used in SIMATIC S7‑300 PLC systems to enable industrial Ethernet connectivity between the controller and network devices. Installed in control panels, automation systems, and distributed machine networks where reliable Ethernet communication is required. Maintenance teams and system integrators use this module for replacement, retrofit, and system integration to support high‑speed data exchange with SCADA, HMIs, and remote devices.

Applications:

The Siemens 6GK7343‑1EX30‑0XE0 module is used in industrial automation to connect S7‑300 PLCs to Ethernet/IP networks for communication with operator panels, SCADA systems, remote I/O, and other Ethernet‑enabled devices. It is deployed in manufacturing plants, process control systems, material handling installations, and building automation where real‑time data sharing across networked systems is needed. With standard Ethernet support and robust industrial design, it enhances connectivity and diagnostics in automated environments.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6GK7343‑1EX30‑0XE0
• Product Type: Ethernet Communication Processor (CP 343‑1)
• PLC Platform: SIMATIC S7‑300
• Communication Standard: Industrial Ethernet (IEEE 802.3)
• Interface: 10/100 Mbps RJ45 Ethernet port
• Protocols Supported: TCP/IP, UDP, ISO on TCP (RFC1006), S7 communication
• Network Services: Web server, diagnostics (model dependent)
• Connection: Single Ethernet port for field network
• Indicators: LEDs for link, activity, power, error
• Data Rate: 10/100 Mbps
• Mounting: PB‑bus rack installation in S7‑300 system
• Protection Rating: IP20 (module housing)
• Operating Temperature: Industrial range
• Application: PLC Ethernet network communication and integration

Common Replacements:

• Siemens 6GK7343‑1EX30‑0XE1
• Siemens CP 343‑1
• Siemens CP 343‑1
