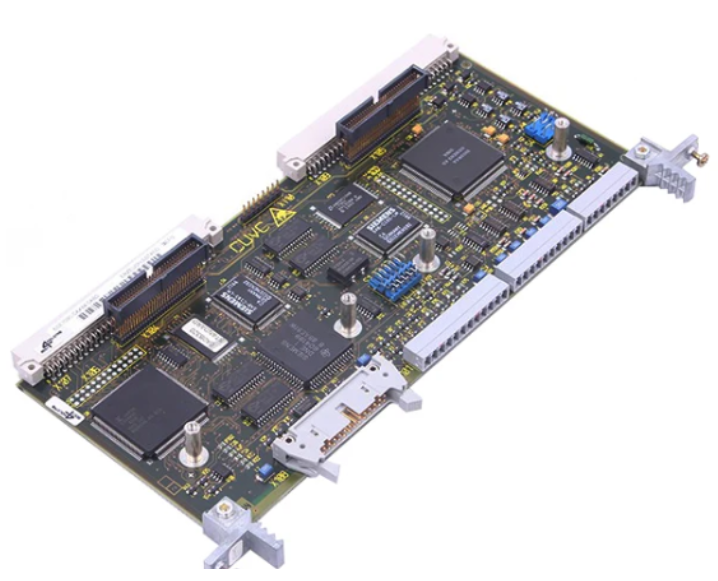

Siemens 6SE7 090-0XX84-0AB0 CUVC Control Unit 6SE70900XX840AB0

Description:

The Siemens 6SE7090-0XX84-0AB0 CUVC control unit is used in SIMOVERT MASTERDRIVES motor control systems. Commonly installed in industrial drive systems, cranes, conveyors, and heavy-duty motor applications. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and precision motor drive control.

Applications:

The Siemens 6SE7090-0XX84-0AB0 is used in industrial automation systems to manage and control variable frequency drives and inverter operations. It is widely deployed in motor drive systems, cranes, conveyors, and process machinery where precise speed and torque control are required. The CUVC control unit enables advanced drive functionality, communication integration, and reliable performance in demanding industrial environments.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6SE7090-0XX84-0AB0
• Product Type: CUVC Control Unit (Vector Control Module)
• System Compatibility: SIMOVERT MASTERDRIVES
• Control Method: Vector control (open-loop and closed-loop)
• Communication Interfaces: RS-232 / RS-485, USS protocol
• Encoder Interface: HTL pulse encoder support
• I/O Interfaces: Digital and analog inputs/outputs
• Sensor Inputs: Motor temperature (PTC / KTY84)
• Supply Voltage: 24 V DC
• Firmware Version: V3.4
• Mounting: Drive-integrated module
• Operating Temperature: -25°C to +60°C
• Protection Rating: IP20
• Product Status: Discontinued / spare part available

Common Replacements:

• Siemens 6SE7090-0XX84-0FA0
• Siemens 6SE7090-0XX84-0FB0
• Siemens 6SE7090-0XX84-0FC0
