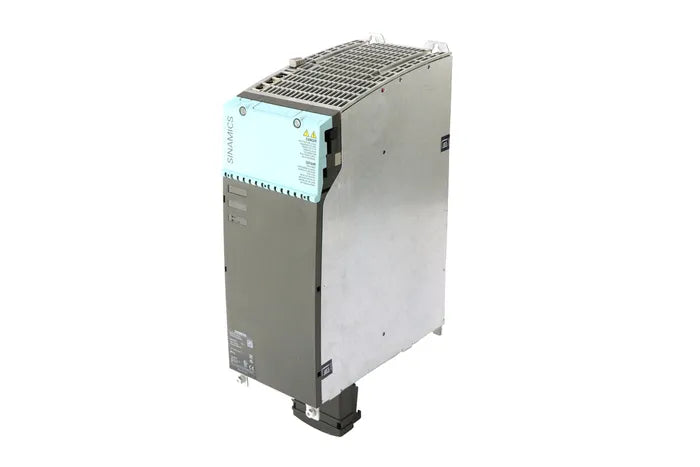

Siemens 6SL3120-1TE24-5AA3 SINAMICS S120 Single Motor Module, 132 kW, 600 V DC, Internal Air Cooling

Description:

The Siemens 6SL3120-1TE24-5AA3 is a Single Motor Module from the SINAMICS S120 drive system family, designed to deliver efficient, high-performance motor control in demanding industrial applications. Rated for 132 kW, this module operates on a 600 V DC bus and uses internal air cooling, making it ideal for use in modular multi-axis drive systems. Its booksize format and integrated safety functions offer compact installation and compliance with modern automation requirements.

Technical Specifications:

Manufacturer: Siemens
Series: SINAMICS S120
Model Number: 6SL3120-1TE24-5AA3
Module Type: Single Motor Module
DC Link Voltage: 600 V DC
Output Current: 210 A
Power Rating: 132 kW
Cooling: Internal air cooling
Mounting: Booksize format for control cabinet
Communication: DRIVE-CLiQ interface
Safety Features: Safety Integrated (STO)
Protection Rating: IP20
Ambient Temperature: 0 to 40°C (without derating)
Dimensions: Approx. 275 x 100 x 380 mm
Weight: Approx. 13 kg

Applications:

• Ideal for heavy-duty motor operations in sectors like metal processing and bulk material handling, where high power and precision are crucial.

Benefits:

• Offers robust performance with high power output, ensuring reliable operation under heavy loads. Its efficient cooling system and durable construction prolong the life of the equipment, resulting in fewer system failures and lower maintenance costs.
