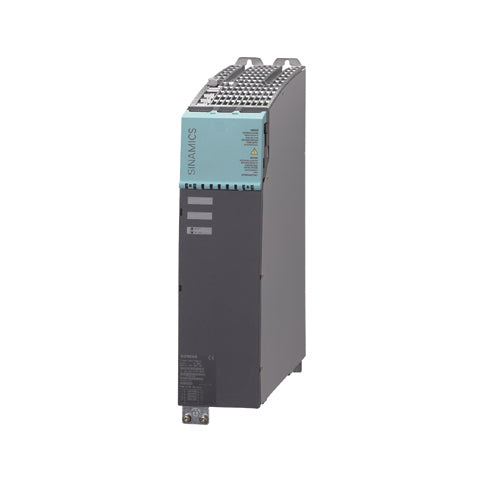

Siemens 6SL3120-2TE15-0AA4 SINAMICS S120 Double Motor Module, 3 AC 400 V, 2x25 A, Booksize

Description:

The Siemens 6SL3120-2TE15-0AA4 SINAMICS S120 Double Motor Module is a dual-axis drive module designed to control two motors independently within SINAMICS S120 drive systems. Operating on a 600 V DC link, this module delivers 400 V three-phase AC output with 5 A per channel, making it suitable for precision motion control in industrial automation. Its compact booksize design and internal air cooling ensure efficient space utilization and reliable thermal performance. Maintenance teams, OEM machine builders, and system integrators use this module for machine automation, drive system upgrades, control cabinet integration, and replacement of existing motor modules in industrial environments.

Applications:

The 6SL3120-2TE15-0AA4 module is widely used in industrial automation systems requiring dual motor control and high precision. Typical installations include CNC machines, robotics, packaging systems, conveyor systems, and production lines where synchronized or independent motor control improves efficiency and reduces system footprint.

Technical Specifications:

• Manufacturer: Siemens
• Part Number: 6SL3120-2TE15-0AA4
• Series: SINAMICS S120
• Module Type: Double motor module (dual-axis)
• DC Link Voltage: 600 V DC
• Output Voltage: 3 AC 400 V
• Output Current: 2 × 5 A (max up to 2 × 15 A)
• Rated Power: Approx. 2 × 2.7 kW
• Cooling Method: Internal air cooling
• Design Format: Booksize
• Function: Dual motor control with precise speed and torque regulation
• Installation Type: Control cabinet module
• Compatible Systems: SINAMICS S120 drive systems
• Operating Temperature: 0°C to 40°C

Common Replacements:

• Siemens 6SL3120-2TE13-0AA4
• Siemens 6SL3120-2TE15-0AA3
• Siemens 6SL3120-1TE23-0AA3
