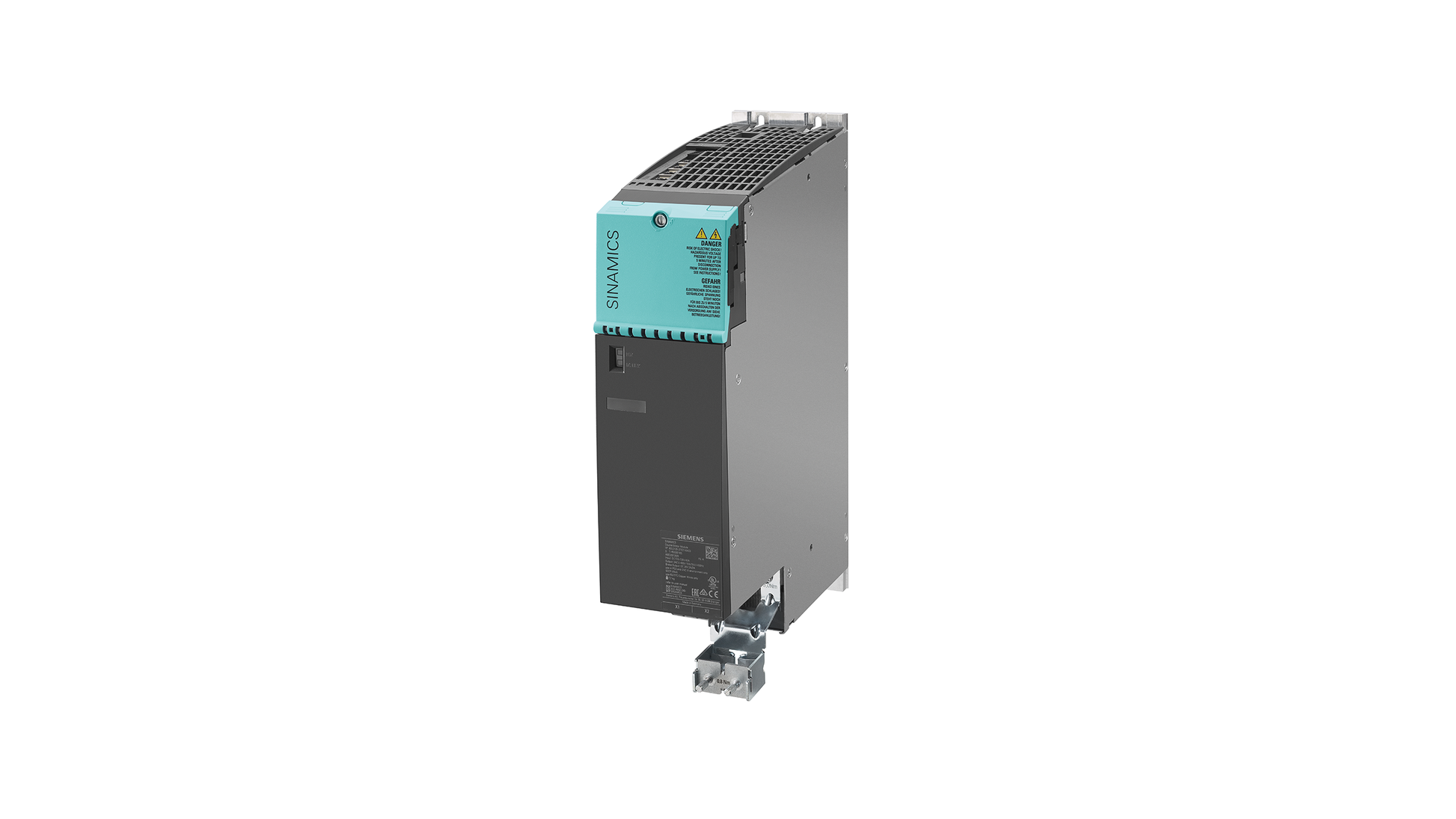

Siemens 6SL3120-2TE15-0AA4 SINAMICS S120 Double Motor Module, 3 AC 400 V, 2x25 A, Booksize

Description:

The Siemens 6SL3120-2TE15-0AA4 is a SINAMICS S120 double motor module designed to provide high-performance drive control for multi-axis systems in demanding industrial automation environments. This booksize module delivers dual 25 A outputs for controlling two independent motors from a single compact unit. Engineered for energy-efficient operation and precision motor performance, it supports regenerative feedback, integrated safety functions, and seamless connectivity within the SINAMICS drive system. Ideal for machine tools, packaging, and general motion control, it features dynamic response and reliable thermal management for continuous use in industrial settings.

Technical Specifications:

Manufacturer: Siemens
Series: SINAMICS S120
Catalog number: 6SL3120-2TE15-0AA4
Motor module type: Double motor module
Output current: 2 x 25 A
Input voltage: 3 AC 400 V
DC link voltage: 600 V DC (nominal)
Cooling method: Internal air cooling
Mounting type: Booksize format
Integrated safety: STO (Safe Torque Off)
Ambient temperature: 0 to 40 °C (without derating)
Protection class: IP20
Communication: PROFINET, PROFIBUS, via control unit
Dimensions: Approx. 380 x 60 x 200 mm
Weight: Approx. 5.5 kg
