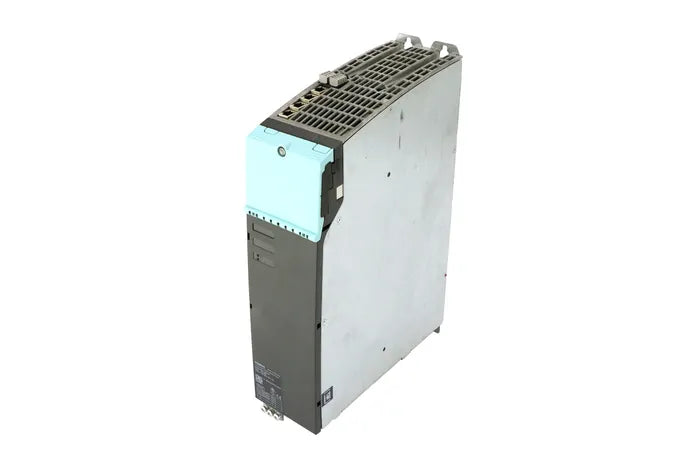

Siemens 6SL3120-2TE21-8AA3 SINAMICS S120 Double Motor Module, 2x18 A, 600 V DC

Description:

The Siemens 6SL3120-2TE21-8AA3 is a double motor module from the SINAMICS S120 series, designed for high-performance multi-axis motion control. This module offers two independent 18 A outputs and operates on a shared 600 V DC bus, making it ideal for modular drive systems in complex industrial automation environments.

Technical Specifications:

Series: SINAMICS S120
Type: Double motor module
Rated output current: 2 x 18 A
DC bus voltage: 600 V DC (nominal)
Cooling method: Internal air cooling
Module width: 100 mm (booksize format)
Control interface: Integrated DRIVE-CLiQ
Mounting: Vertical, in control cabinet
Power connection: Screw terminals
Protection rating: IP20
Ambient temperature: 0 to 40 °C without derating
Weight: Approx. 3.5 kg
