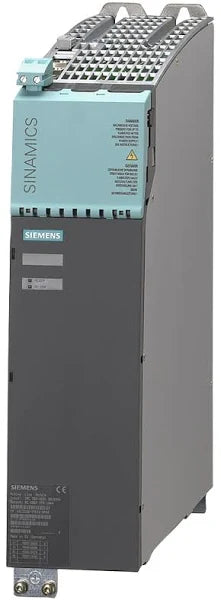

Siemens 6SL3130-6TE23-6AA3 SINAMICS S120 Smart Line Module, 36 kW, 600 V DC, Internal Air Cooling

Description:

The Siemens 6SL3130-6TE23-6AA3 is a Smart Line Module from the SINAMICS S120 series, designed to provide regulated DC bus power for multi-axis drive systems. Rated for 36 kW and 60 A output, it operates on a 3-phase 380–480 V AC mains input and delivers 600 V DC to connected motor modules. This compact, booksize module features internal air cooling and an integrated DRIVE-CLiQ interface for streamlined communication and diagnostics. Ideal for machine tools and other modular automation systems, it ensures high efficiency, system flexibility, and easy cabinet integration.

Technical Specifications:

Manufacturer: Siemens
Series: SINAMICS S120
Model number: 6SL3130-6TE23-6AA3
Input voltage: 3-phase 380–480 V AC
DC output voltage: 600 V DC
Rated output current: 60 A
Power rating: 36 kW
Cooling method: Internal air cooling
Form factor: Booksize
Communication interface: Integrated DRIVE-CLiQ
Safety: Supports Safety Integrated (STO)
Protection rating: IP20
Operating temperature: 0 to 40 °C (without derating)
Dimensions: Approx. 381 x 150 x 278 mm
Weight: Approx. 10 kg

Applications:

• Suitable for modular drive systems where space is limited, this module is perfect for automated production lines, machine tools, and material handling systems that require efficient power distribution.

Benefits:

• It provides intelligent energy management with internal cooling, ensuring optimal temperature regulation and consistent performance. This leads to improved system reliability and reduced downtime, facilitating seamless integration into existing systems while maximizing operational efficiency.
