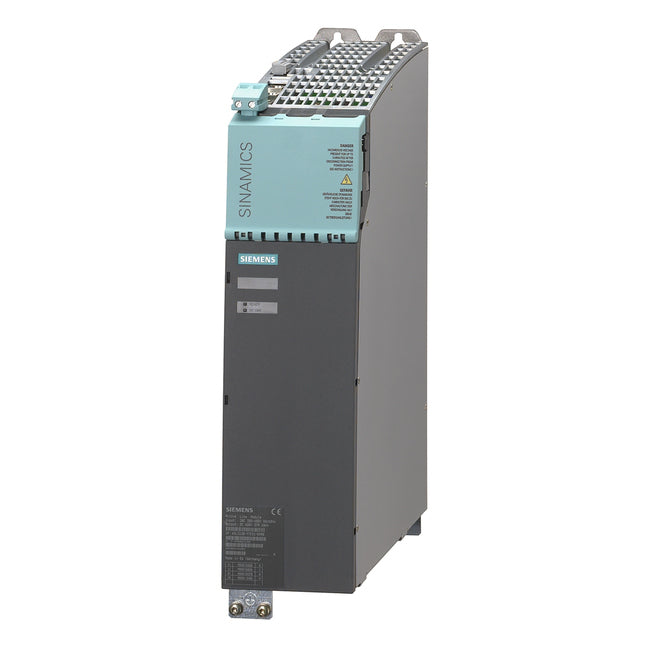

Siemens 6SL3136‑7TE23‑6AA3 SINAMICS S120 Active Line Module, 36 kW, 60 A, 600 V DC 6SL31367TE236AA3

Description:

The Siemens 6SL3136-7TE23-6AA3 SINAMICS S120 Active Line Module is a high-performance power supply unit designed for SINAMICS S120 drive systems to provide regulated DC link voltage with active power control. Rated at 36 kW and 60 A with a 600 V DC output, this module ensures efficient energy conversion, regenerative capability, and improved power quality for demanding industrial drive applications. Maintenance teams, OEM machine builders, and system integrators use this module for drive system installations, energy-efficient upgrades, control cabinet integration, and replacement of existing line modules in advanced motion control systems.

Applications:

The 6SL3136-7TE23-6AA3 active line module is widely used in industrial automation systems requiring high-performance drive control and energy regeneration. Typical installations include CNC machinery, robotics systems, conveyor systems, packaging equipment, and manufacturing production lines where SINAMICS S120 drives control motors with high precision while maintaining efficient energy usage and power stability.

Technical Specifications:

• Manufacturer: Siemens
• Part Number: 6SL3136-7TE23-6AA3
• Series: SINAMICS S120
• Module Type: Active line module
• Power Rating: 36 kW
• Output Current: 60 A
• DC Link Voltage: 600 V DC
• Function: Regulated DC power supply with regenerative capability
• Installation Type: Drive system cabinet module
• Compatible Systems: SINAMICS S120 drive systems
• Cooling: Designed for cabinet integration with system cooling
• Operating Temperature: 0°C to 40°C (typical industrial range)

Common Replacements:

• Siemens 6SL3136-7TE21-6AA3
• Siemens 6SL3136-7TE24-6AA3
• Siemens 6SL3120-1TE21-0AA3
