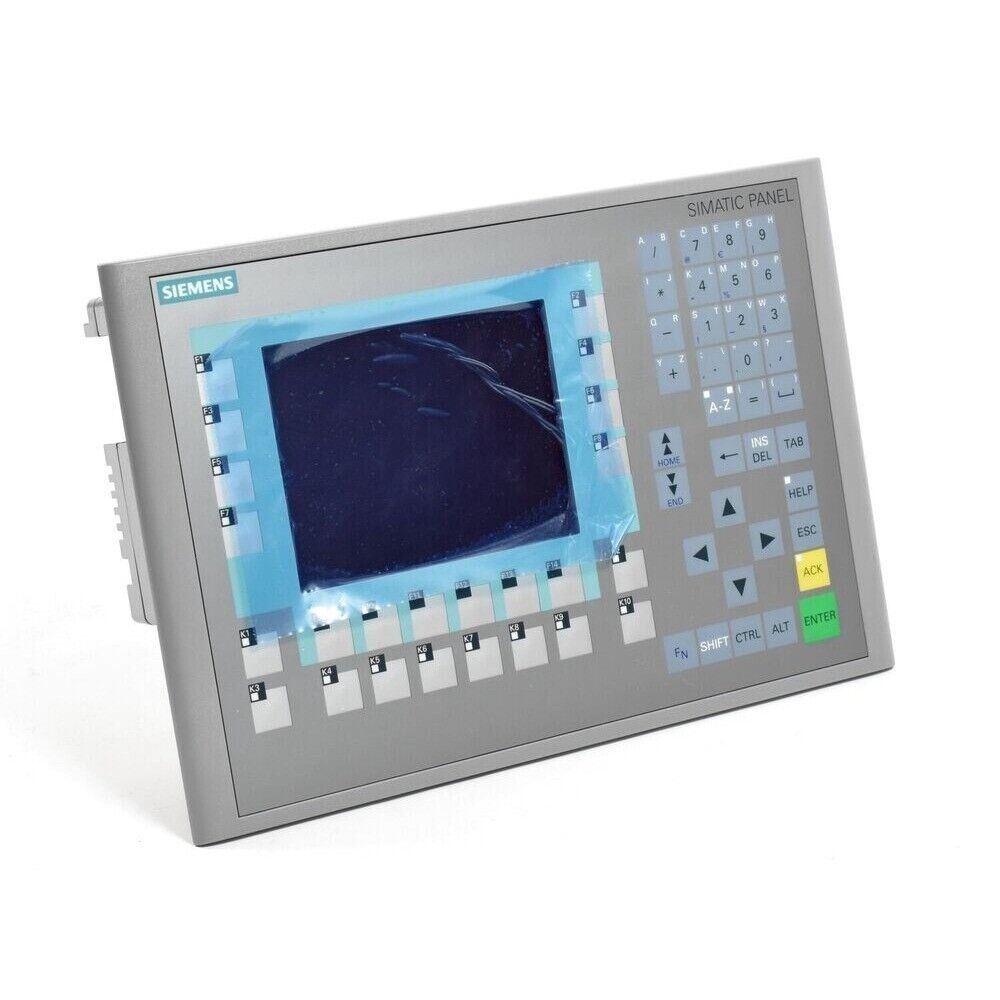

Siemens 6AV6 643-0BA01-1AX0 HMI Operator Panel 6AV66430BA011AX0

Description:

The Siemens 6AV6643-0BA01-1AX0 HMI Operator Panel is used in SIMATIC HMI systems for operator control and process visualization. Commonly installed in industrial control panels, manufacturing lines, packaging machines, and process automation systems. Maintenance teams, OEMs, and system integrators use this HMI for system monitoring, operator interaction, retrofit upgrades, and replacement of legacy operator panels.

Applications:

The Siemens 6AV6643-0BA01-1AX0 HMI panel is used in industrial environments such as manufacturing plants, automation systems, and process industries to provide real-time visualization, operator control, and system diagnostics through a TFT display interface connected to PLC systems and industrial communication networks.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6AV6643-0BA01-1AX0
• Product Type: Operator Panel HMI (OP 277)
• Series: SIMATIC HMI
• Display Size: 5.7 inches TFT
• Display Resolution: 320 x 240 pixels
• Memory: 4 MB configuration memory
• Interface Type: Keypad + touchscreen combination
• Communication Interfaces: MPI, PROFIBUS, Ethernet, USB
• Supply Voltage: 24 V DC
• Configuration Software: WinCC Flexible 2005 Standard SP1
• Mounting: Panel mount
• Protection Rating: IP65 (front), IP20 (rear)
• Operating Temperature: 0°C to +50°C
• Processor: 32-bit RISC processor

Common Replacements:

• Siemens 6AV6643-0CB01-1AX1
• Siemens 6AV6647-0AH11-3AX1
• Siemens 6AV6648-0CC11-3AX0
