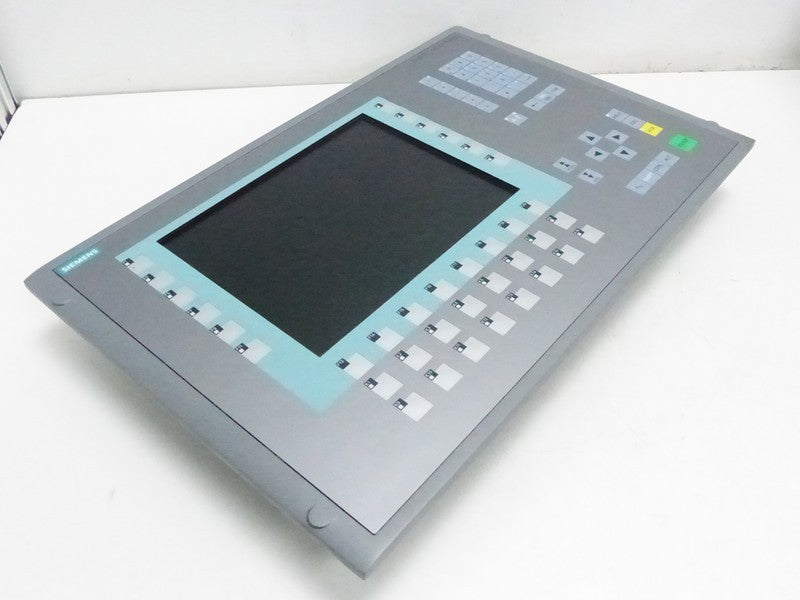

Siemens 6AV6 643-0DD01-1AX1 MP 277 Touch Panel HMI 6AV66430DD011AX1

Description:

The Siemens MP 277 6AV6 643-0DD01-1AX1 HMI Touch Panel is used in SIMATIC operator interface systems for machine and process visualization and control. Commonly installed in industrial control cabinets, production machinery, packaging systems, and automated manufacturing lines. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, or upgrade of existing HMI operator panels in automation systems.

Applications:

The Siemens 6AV6 643-0DD01-1AX1 MP 277 HMI is used to provide operator control and monitoring of industrial machines and automated processes. It enables real-time visualization of system status, alarms, process values, and control functions in manufacturing environments such as assembly lines, packaging equipment, and process plants.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6AV6643-0DD01-1AX1
• Product Type: SIMATIC MP 277 Multi Panel HMI
• Display Size: 10.4-inch TFT
• Resolution: 640 × 480 pixels
• Input Type: Touchscreen with keypad interface
• Interfaces: RS422, RS485, Ethernet (RJ45)
• Software Compatibility: WinCC Flexible 2005 Standard SP1
• Memory: 6 MB user memory
• Mounting: Panel mount
• Protection Rating: IP65 (front)
• Product Status: Discontinued (spare part support available)

Common Replacements:

• Siemens 6AV6643-0CD01-1AX1
• Siemens 6AV6643-0DB01-1AX1
• Siemens 6AV6643-0DD01-1AX2
