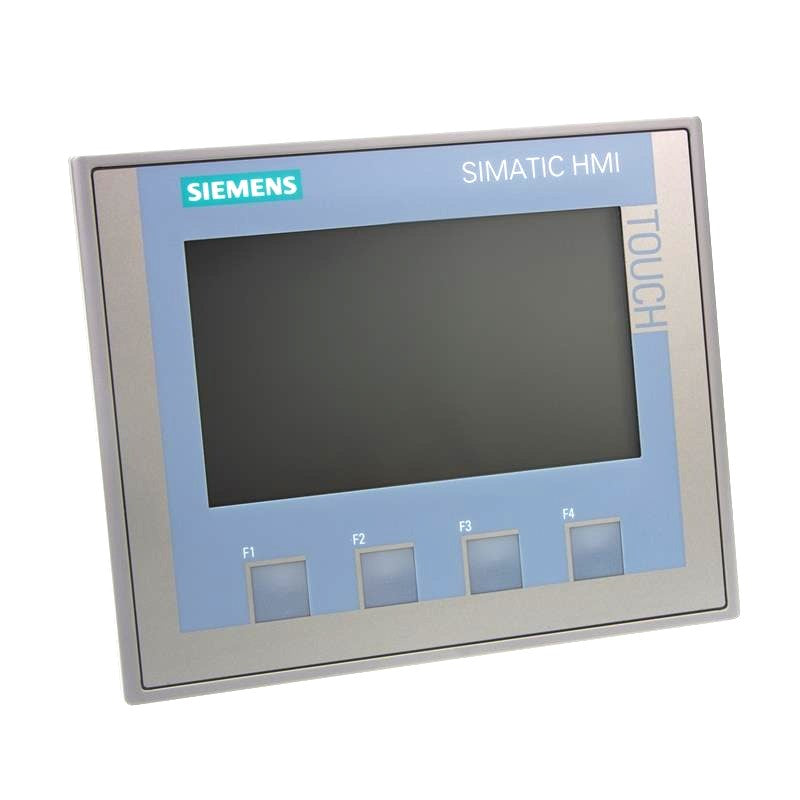

Siemens 6AV2123-2DB03-0AX0 Simatic KTP 400 TOUCH PANEL 6AV21232DB030AX0

Description:

The Siemens 6AV2123-2DB03-0AX0 SIMATIC KTP400 Basic HMI touch panel is used in industrial automation control and visualization systems. Commonly installed in machine control panels, compact automation systems, and S7-1200 PLC-based applications. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and operator interface implementation.

Applications:

The Siemens 6AV2123-2DB03-0AX0 is used in industrial automation systems to provide operator control and real-time monitoring of machines and processes. It is widely deployed in production lines, packaging machines, and OEM equipment where compact and efficient HMI solutions are required. The touch panel enables seamless interaction with PLC systems, improving usability and system diagnostics in industrial environments.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6AV2123-2DB03-0AX0
• Product Type: SIMATIC HMI KTP400 Basic Panel
• Display Size: 4.3-inch TFT widescreen
• Resolution: 480 × 272 pixels
• Colors: 65,536 colors
• Input Type: Touchscreen with 4 function keys
• Interface: PROFINET / Industrial Ethernet (RJ45)
• Supply Voltage: 24 V DC (19.2–28.8 V range)
• Memory: Approx. 10 MB user memory
• Software Compatibility: WinCC Basic (TIA Portal) V13 or higher
• Protection Rating: IP65 (front), IP20 (rear)
• Mounting: Panel mount
• Operating Temperature: 0°C to 50°C
• Weight: Approx. 0.45 kg

Common Replacements:

• Siemens 6AV2123-2DB03-0AX1
• Siemens 6AV2123-2GA03-0AX0
• Siemens 6AV2123-2GB03-0AX0
