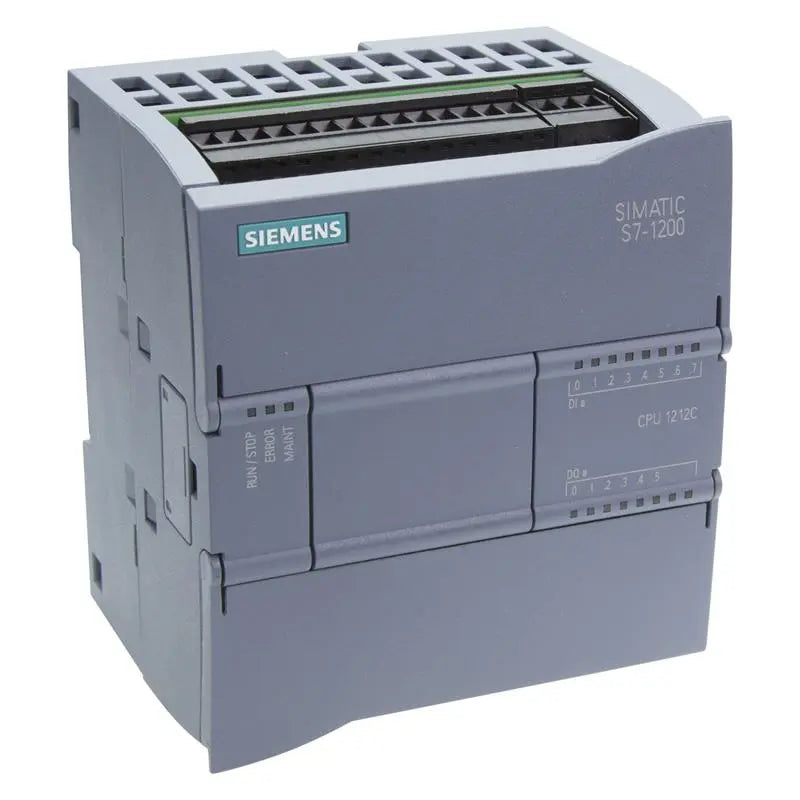

Siemens Simatic S7-1200 CPU 1212C 6ES7212-1BE40-0XB0 6ES7 212-1BE40-0XB0 6ES72121BE400XB0

Description:

6ES72121BE400XB0 COMPACT CPU SIMATIC S7-1200 CPU 1212C 8 DIGITAL INPUTS 6 DIGITAL OUTPUTS 85-264 VAC 24 VDC 2 AMP 47-63 HZ 75 KB PROGRAM/DATA MEMORY The Siemens 6ES7 212-1BE40-0XB0 is a compact and efficient digital input module designed for the S7-1200 PLC series, offering reliable and accurate digital signal acquisition in industrial automation systems. This module features 8 digital input channels that accept 24V DC signals, ideal for interfacing with various sensors and switches. It includes integrated diagnostics with LED indicators that display the status of each input, facilitating real-time monitoring and troubleshooting. The 6ES7 212-1BE40-0XB0’s robust design and compact size make it well-suited for space-constrained environments while ensuring dependable performance in diverse automation applications.

Technical Specifications:

• Product Type: Digital Input Module
• Series: S7-1200
• Catalog Number: 6ES7 212-1BE40-0XB0
• Number of Inputs: 8
• Input Voltage: 24V DC
• Input Current: 5 mA per channel
• Response Time: 1 ms (typical)
• Isolation: 500V (channel-to-channel and channel-to-bus)
• Diagnostic Indicators: LEDs for input status
• Mounting Type: DIN rail
• Dimensions (W x H x D): Approximately 40 mm x 125 mm x 120 mm
• Operating Temperature Range: 0°C to 60°C
• Storage Temperature Range: -40°C to 85°C
• Relative Humidity: 5% to 95%, non-condensing
