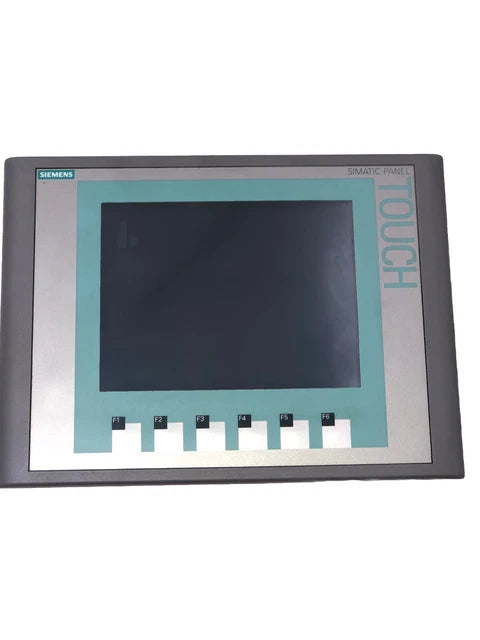

Siemens Touch Panel 6AV6 647-0AC11-3AX0 6AV6647-0AC11-3AX0

Description:

The Siemens 6AV6 647-0AC11-3AX0 is a high-resolution HMI (Human-Machine Interface) panel designed to enhance operator control and interaction within industrial automation systems. Part of the Siemens SIMATIC HMI Comfort Panel series, this model features a 7-inch touchscreen display with a vibrant and intuitive interface that provides real-time monitoring and control of automated processes. It supports various communication protocols and integrates seamlessly with Siemens PLCs for efficient data exchange and system management. The robust design and user-friendly interface make it ideal for applications in diverse industrial environments where reliable and precise operator interaction is crucial. 6AV66470AC113AX0 DISCONTINUED BY MANUFACTURER OPERATOR INTERFACE SIMATIC HMI KTP600 BASIC COLOR DP KEY/TOUCH OPERATION 6" TFT DISPLAY 256 COLORS MPI/PROFIBUS DP INTERFACE CONFIGURABLE REPLACED BY 6AV6647-0AC11-3AX1

Technical Specifications:

• Part Number: 6AV6 647-0AC11-3AX0
• Type: HMI Comfort Panel
• Screen Size: 7 inches
• Display Type: TFT LCD, 800 x 480 pixels (WVGA)
• Touchscreen: Yes, resistive touch
• Communication Ports: 1 x Ethernet (PROFINET), 1 x USB
• Operating System: Windows CE
• Memory: 512 MB RAM, 256 MB Flash
• Power Supply: 24 V DC
• Temperature Range: 0 to 55°C (operating)
• Degree of Protection: IP65 (front)
• Dimensions (W x H x D): 211 x 155 x 40 mm
• Weight: Approximately 1.2 kg
