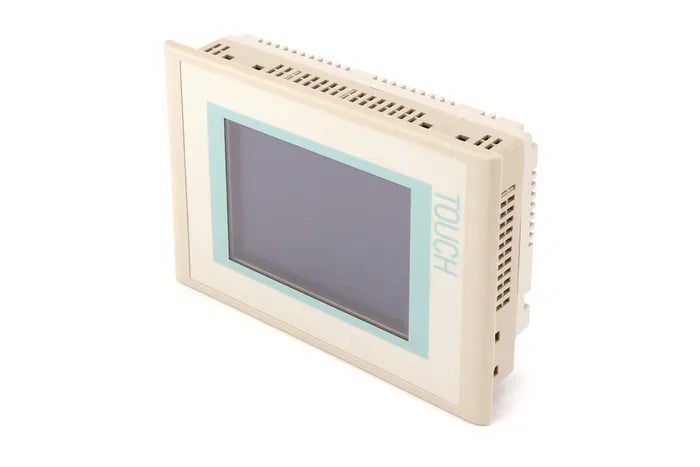

Siemens TP177 6AV6 640-0CA11-0AX1 SHA24 HMI PLC Module CA 6400CA110AX1

Description:

The Siemens 6AV6640-0CA11-0AX1 TP177 HMI touch panel is used in industrial automation control and visualization systems. Commonly installed in machine control panels, packaging equipment, and SIMATIC S7 PLC-based applications. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and operator interface integration.

Applications:

The Siemens TP177 6AV6 640-0CA11-0AX1 HMI panel is used in manufacturing plants, industrial machinery, automation lines, and control systems to provide real-time monitoring, operator input, alarm handling, and process visualization where efficient human-machine interaction is required.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6AV6640-0CA11-0AX1
• Product Type: SIMATIC TP177 HMI Touch Panel
• Display Size: 5.7-inch TFT
• Resolution: 320 × 240 pixels
• Colors: 256 colors
• Input Type: Touchscreen
• Interface: MPI / PROFIBUS DP
• Supply Voltage: 24 V DC
• Memory: Approx. 4 MB user memory
• Software Compatibility: WinCC flexible
• Protection Rating: IP65 (front), IP20 (rear)
• Mounting: Panel mount
• Operating Temperature: 0°C to 50°C
• Weight: Approx. 0.7 kg
• Product Status: Discontinued / legacy HMI

Common Replacements:

• Siemens 6AV2123-2DB03-0AX0
• Siemens 6AV2123-2GB03-0AX0
• Siemens 6AV2124-0GC01-0AX0
