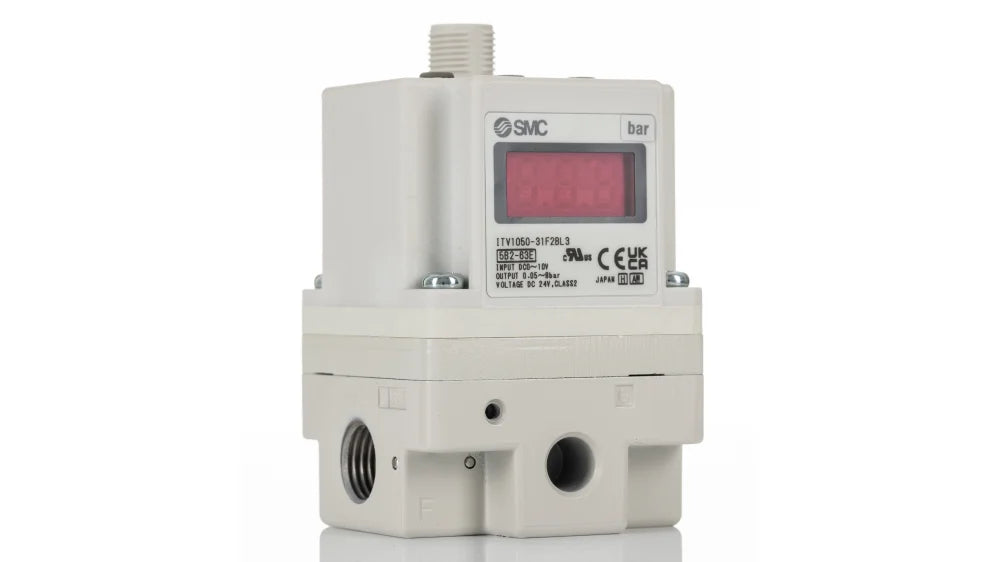

SMC ITV1050-312L Electro Pneumatic Regulator ITV1050312L

Description:

The SMC ITV1050-312L is an electro-pneumatic regulator that precisely controls air pressure in response to an electrical input signal. Designed for applications requiring high precision and repeatability, the ITV1050 series provides fast response and high flow in a compact package. It is commonly used in robotics, packaging, and semiconductor manufacturing environments.

TECHNICAL SPECIFICATIONS:
Manufacturer: SMC Corporation
Model Number: ITV1050-312L
Type: Electro-Pneumatic Regulator
Input Signal: 4–20 mA
Output Pressure Range: 0.005 to 0.9 MPa
Supply Pressure: Max. 1.0 MPa
Port Size: 1/4" Rc (PT)
Power Supply: 24 VDC
Linearity: ±1% F.S.
Repeatability: ±0.5% F.S.
Sensitivity: ±0.2% F.S.
Ambient and Fluid Temperature: 0–50°C
Enclosure Rating: IP65
Weight: Approx. 0.45 kg (0.99 lbs)
Dimensions (L x W x H): Approx. 114 x 30 x 110 mm
