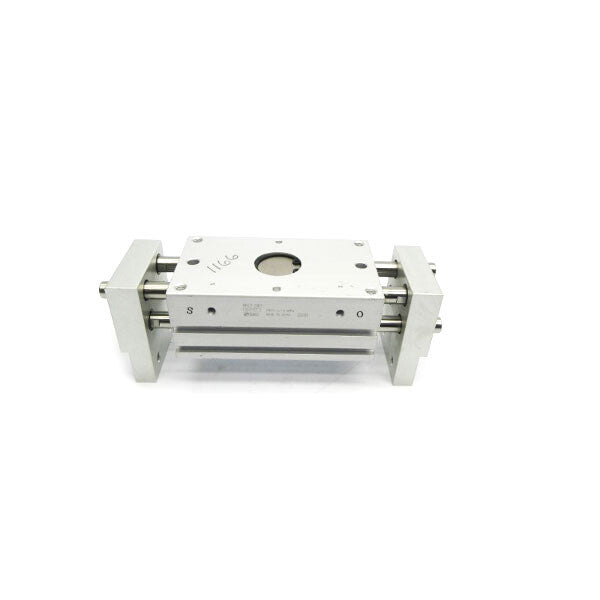

SMC MHL2-20D1 Parallel Type Air Gripper Wide Type Pneumatic Finger MHL220D1

Description:

The SMC MHL2-20D1 is a parallel style air gripper designed for applications requiring a wide opening range and secure gripping force. Featuring a double-acting piston mechanism, this model offers synchronized jaw movement and high repeatability. Its compact, lightweight design is ideal for robotic arms and automated pick-and-place systems in manufacturing environments.

TECHNICAL SPECIFICATIONS:
Manufacturer: SMC Corporation
Model Number: MHL2-20D1
Type: Wide Opening Parallel Gripper
Actuation: Double Acting (air cylinder)
Bore Size: 20 mm
Opening Stroke (per jaw): Approx. 20 mm
Total Opening Width: Approx. 40 mm
Operating Pressure Range: 0.2 – 0.6 MPa
Repeatability: ±0.1 mm
Lubrication: Not required
Ambient and Fluid Temperature: -10 to 60°C
Mounting: Multiple mounting options (body tapped and through-hole)
Port Size: M5
Weight: Approx. 290 g
Body Material: Aluminum alloy
Gripping Force (at 0.6 MPa): Approx. 71 N per jaw
