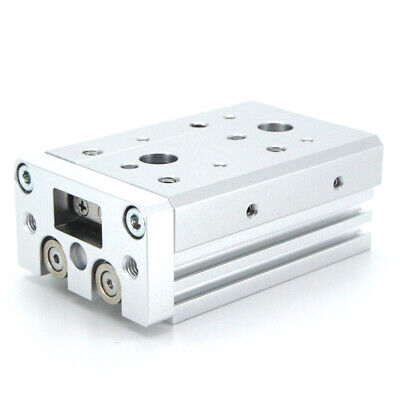

SMC MXS8-40 Slide Cylinder MXS840

Description:

The SMC MXS8-40 is a precision slide table actuator designed for applications requiring high accuracy and compact size. Featuring dual-rod and linear guide construction, it offers excellent rigidity and smooth operation. The MXS8-40 is ideal for pick-and-place systems, small part handling, and automation tasks requiring precise linear movement within limited space.

TECHNICAL SPECIFICATIONS:
Manufacturer: SMC Corporation
Model Number: MXS8-40
Type: Precision Slide Table
Bore Size: 8 mm
Stroke: 40 mm
Actuation Type: Double acting
Mounting: Body tapped, through-hole
Port Size: M5 x 0.8
Maximum Operating Pressure: 0.7 MPa
Ambient and Fluid Temperature: -10 to 60°C (no freezing)
Cushion: Rubber stopper
Repeatability: ±0.01 mm
Dimensions (L x W x H): Approx. 89 x 26 x 27 mm
Weight: Approx. 0.29 kg (0.64 lbs)
