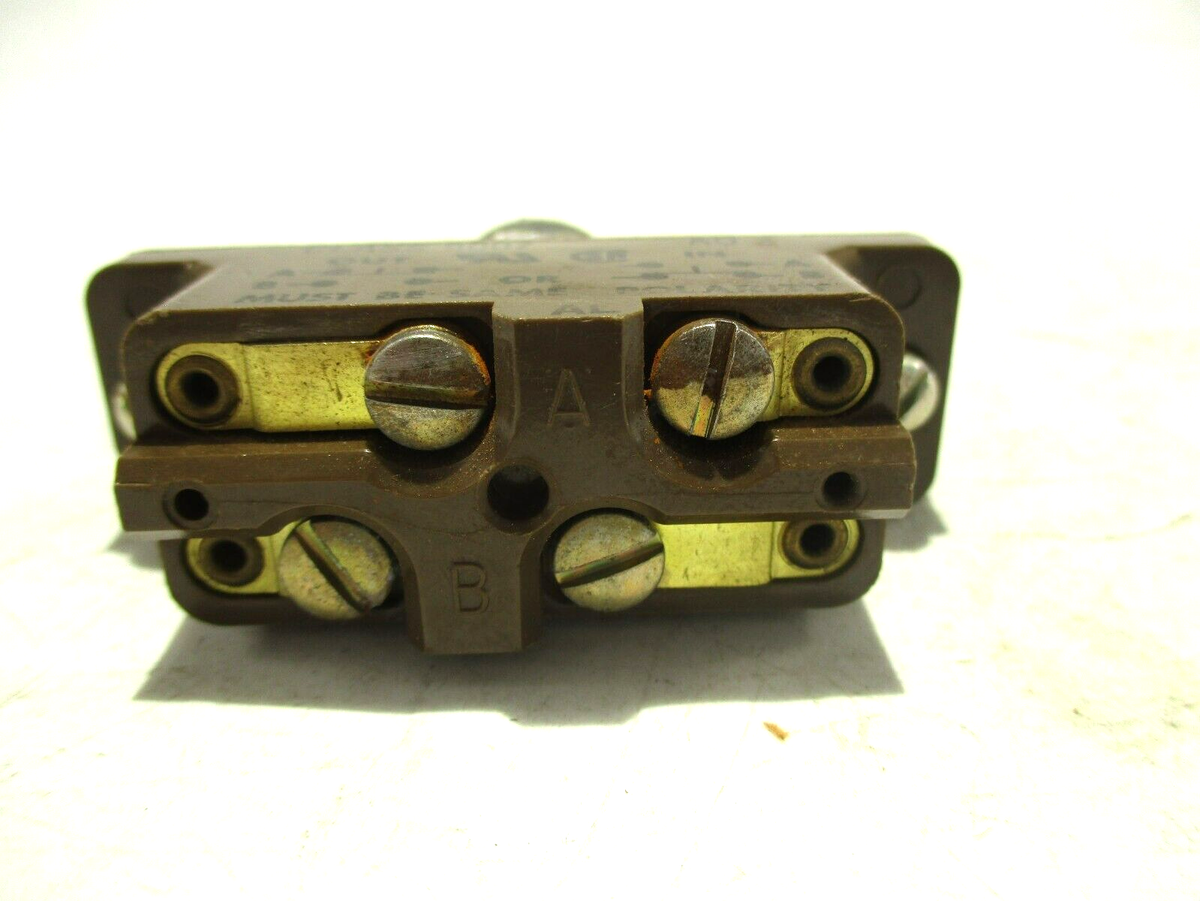

SQUARE D 9007-AP324 LIMIT SWITCH 9007AP324

Description:

The Square D 9007‑AP324 limit switch is used in industrial control systems to detect mechanical position changes and send discrete signals to control circuits. Commonly installed on conveyor systems, automated machinery, packaging equipment, and material handling systems across manufacturing environments. Maintenance teams and system integrators use this switch for position detection, safety interlock functions, and replacement of worn or failed limit switches.

Applications:

The Square D 9007‑AP324 limit switch is widely used in manufacturing and automation systems requiring dependable mechanical actuation feedback. It is commonly found on conveyors, lifts, presses, robotic systems, assembly lines, and packaging machines where end‑of‑travel detection or sequencing feedback is required for safe and consistent operation.

Technical Specifications:

• Model: 9007‑AP324 industrial limit switch
• Actuator type: Sealed roller lever actuator
• Contact configuration: Typically 1 N.O. + 1 N.C. micro‑switch contacts
• Electrical rating: Up to ~10 A @ 600 VAC / ~10 A @ 240 VAC (industrial control rating)
• Housing: Heavy‑duty enclosed industrial housing
• Terminals: Screw terminal connection
• Mounting: Through‑hole mounting design
• Actuation travel: Defined mechanical lever movement
• Operating temperature: Industrial ambient range (~‑25°C to +80°C typical)
• Protection design: Enclosed construction suitable for dust/splash environments
• Mechanical life: High cycle durability typical of 9007 series

Common Replacements:

• Square D 9007MS104S11
• Allen‑Bradley 802T‑A2C22D12
• Eaton Limit Switch SBEH1D90
