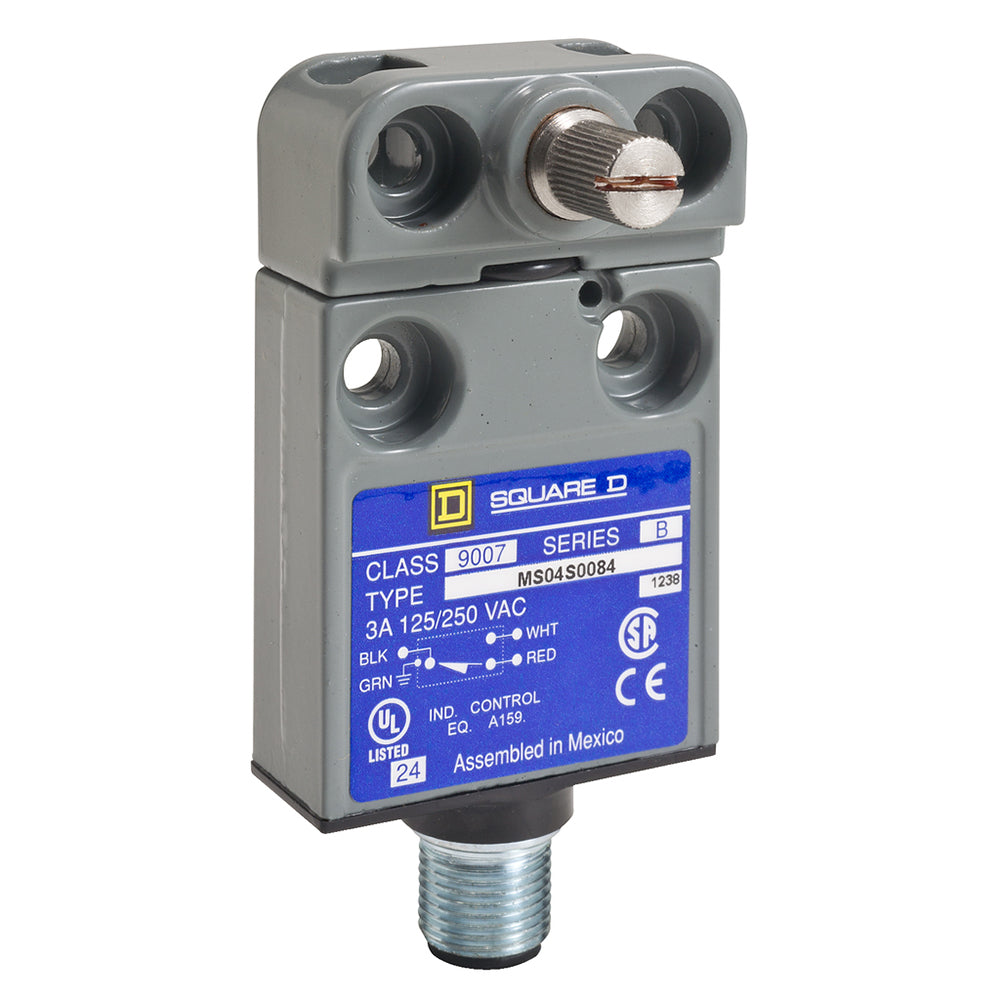

SQUARE D 9007MS04S0084 COMPACT ENCLOSED ROLLER LIMIT SWITCH 9007MS04S0084

Description:

The Square D 9007MS04S0084 compact enclosed roller limit switch is used in industrial control systems to detect machine position or travel endpoints and provide discrete control signaling. Commonly installed on conveyor systems, automated machinery, packaging equipment, and material handling lines across manufacturing environments. Maintenance teams and system integrators use this limit switch for system repairs, safety interlocks, and replacement of worn or failed position detection devices.

Applications:

The Square D 9007MS04S0084 limit switch is widely used in automation and manufacturing environments where reliable mechanical position sensing is required. It is commonly found on conveyors, lift gates, presses, assembly machines, robotics, and packaging lines where actuator presence, travel limits, or safety conditions must be monitored and fed back to PLCs or control panels for safe and consistent operation.

Technical Specifications:

• Model: 9007MS04S0084 Compact Enclosed Roller Limit Switch
• Actuator type: Sealed roller lever actuator
• Housing: Enclosed rugged industrial housing
• Electrical rating: Typically up to 10 A @ 600 VAC / 10 A @ 240 VAC (varies by configuration)
• Contact configuration: 1 N.O. + 1 N.C. (common limit switch arrangement)
• Mechanical travel: Defined actuator range with positive opening contacts
• Mounting: Through‑hole mounting design
• Shaft/roller: Stainless steel or plated roller on lever
• Operating temperature: Industrial ambient range (~‑25°C to +80°C typical)
• Protection rating: Enclosed design suitable for industrial environments (splash/dust protection)
• Termination: Conduit or cable gland entry for secure wiring
• Actuation force: Moderate force suited for mechanical linkage operations
• Compliance: Designed for industrial control and safety circuits

Common Replacements:

• Square D 9007MS14S0112
• Allen‑Bradley 802T‑A2C22D12
• Eaton E‑Stop/Limit Switch SBEH1D90
