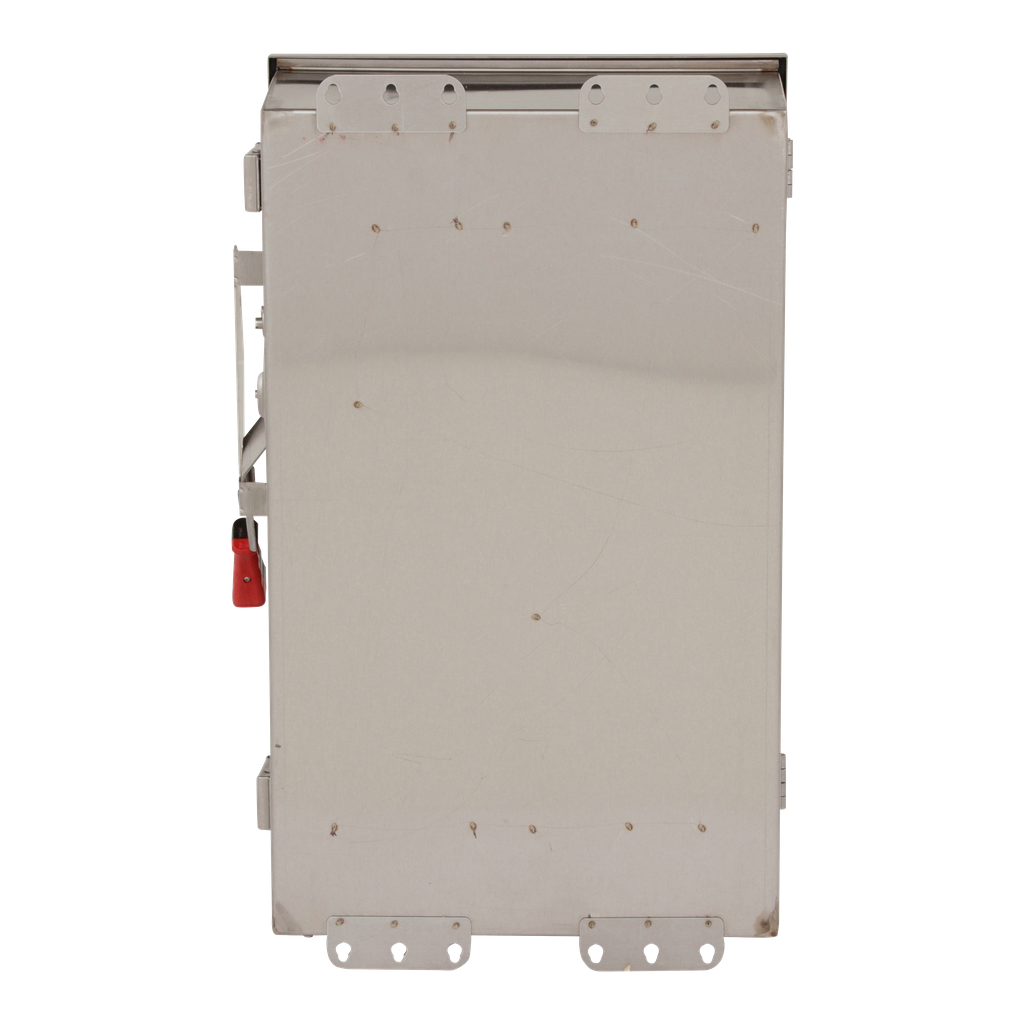

SQUARE D H224DS Heavy Duty Safety Switch 2p 200a Amp 240v-ac

Description:

H224DS SWITCH FUSIBLE 200A 2P NEMA4 4X 5 STAINLESS The Square D H224DS is a heavy-duty safety switch designed to provide reliable disconnecting means for industrial and commercial applications. Rated at 200 amps and 240V AC, this 2-pole switch ensures secure isolation of electrical equipment for maintenance, servicing, or emergency shutdowns. Built for heavy-duty use, the H224DS features a robust enclosure, corrosion-resistant finish, and a visible blade design for clear indication of the switch position. This switch is ideal for demanding environments, providing safe electrical disconnection with durable performance.

Technical Specifications:

• Model Number: H224DS
• Type: Heavy Duty Safety Switch
• Amperage Rating: 200A
• Voltage Rating: 240V AC
• Poles: 2-pole
• Enclosure Material: Steel with corrosion-resistant finish
• Switch Type: Fusible or non-fusible (varies by configuration)
• Operating Mechanism: Quick-make, quick-break for fast and secure operation
• Visible Blade Design: Yes, for easy verification of switch position
• Mounting Style: Surface mount
• Operating Temperature Range: -30°C to +60°C (-22°F to +140°F)
• Ingress Protection: NEMA Type 1, Type 3R (indoor/outdoor use)
• Dimensions: 26.75 in (H) x 14.25 in (W) x 7.25 in (D)
• Weight: 35 lbs (approx.)
• Certifications:
• UL Listed
• CSA Certified
• NEC Compliant
• Features:
• Heavy-Duty Construction: Designed for demanding environments with a durable steel enclosure
• Lockable Handle: Offers enhanced safety with provisions for padlocking in the OFF position
• Visible Blade: Clear indication of whether the switch is open or closed
• Quick-Make, Quick-Break Mechanism: Ensures reliable disconnection and engagement of circuits
• Fusible/Non-Fusible Option: Available in fusible versions for circuit protection, or non-fusible for isolation only
• Applications:
• Industrial Plants: Used for isolating equipment for maintenance or safety purposes.
• Commercial Buildings: Provides a safe disconnect for electrical circuits.
• Machinery and HVAC Systems: Ideal for motor control and other high-power equipment.
