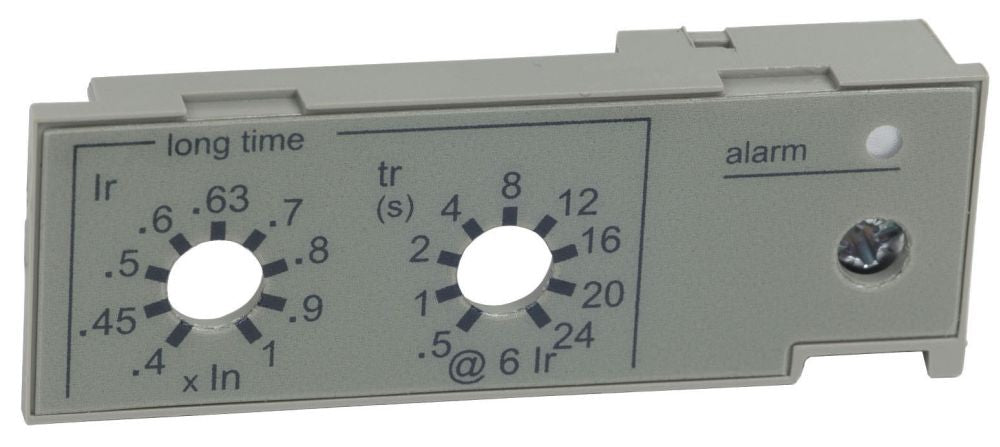

SQUARE D S48818 Rating Plug 600/690v-ac

Description:

S48818 ADJUSTABLE RATING PLUG MASTERPACT NT/NW PLUG "A" MICROLOGIC UL/ANSI CIRCUIT BREAKER TRIP UNIT ACCESSORY The Square D S48818 Rating Plug is designed for use in conjunction with Square D circuit breakers. It allows for the precise setting of the breaker’s current rating, providing flexibility in configuring the protection level based on the specific application requirements. Rated for 600/690V AC, this plug ensures accurate current rating adjustment, enhancing the overall protection and functionality of the electrical distribution system.

Technical Specifications:

• Model Number: S48818
• Type: Rating Plug
• Voltage Rating: 600/690V AC
• Function: Configures the current rating of compatible circuit breakers
• Compatibility: Square D circuit breakers
• Adjustment Range: Specific to the breaker model (check breaker manual)
• Application: Industrial, commercial electrical systems requiring customized protection settings
• Mounting Type: Plug-in accessory for circuit breakers
• Compliance: UL listed

Applications:

• Designed for use with circuit breakers, this rating plug is essential for setting the trip characteristics of protective devices in electrical distribution systems.

Benefits:

• The rating plug enhances the flexibility and adaptability of circuit breakers, allowing for precise setting of trip points to match application requirements. Its reliable performance ensures effective protection of electrical systems, minimizing the risk of overloads and short circuits. Easy installation and calibration simplify maintenance and system adjustments.
