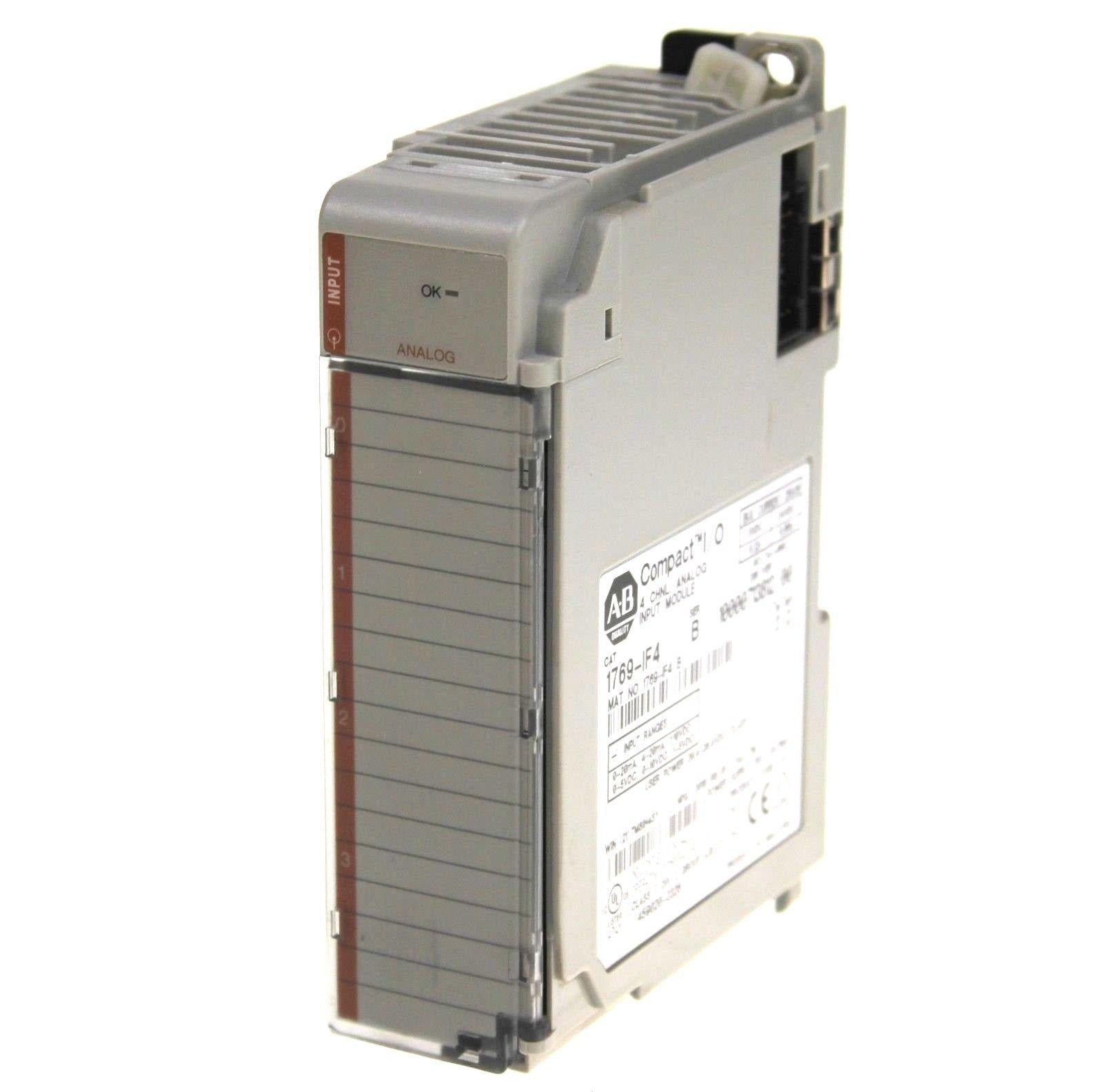

Allen-Bradley 1769-IF4 Analog Input Module 1769IF4 Catalog

Description:

The Allen Bradley 1769-IF4 Analog Input Module is used in CompactLogix and MicroLogix 1500 systems for converting analog signals into digital data for processing. Commonly installed in 1769 Compact I/O chassis within industrial automation systems for monitoring sensors and field instruments. Maintenance teams, OEMs, and system integrators use this module for system expansion, retrofit, or replacement of analog input modules.

Applications:

The Allen Bradley 1769-IF4 is designed for industrial process monitoring applications requiring accurate acquisition of analog signals such as pressure, temperature, flow, and level. It is widely used in manufacturing plants, water and wastewater systems, HVAC applications, and process industries where sensors transmit voltage or current signals (e.g., 4–20 mA or ±10 V). With support for both differential and single-ended inputs, it enables flexible integration with field devices and ensures reliable data acquisition for PLC-based automation systems.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 1769-IF4
• Product Type: Analog Input Module
• Series: 1769 Compact I/O
• Number of Inputs: 4 channels
• Input Types: Voltage and current (±10V, 0–10V, 0–5V, 1–5V, 0–20 mA, 4–20 mA)
• Input Configuration: Differential or single-ended
• Resolution: Up to 16-bit
• Power Supply: 120 mA @ 5V DC, 60 mA @ 24V DC
• Isolation: 500V AC / 710V DC (test)
• Dimensions: Approx. 118 x 35 x 87 mm
• Mounting: DIN rail or panel mount
• Operating Temperature: 0 to 60°C
• Status Indicators: LED indicators for diagnostics
• Lifecycle Status: Active Mature

Common Replacements:

• Allen-Bradley 1769-IF4I
• Allen-Bradley 1762-IF4
• Allen-Bradley 1794-IF4I
