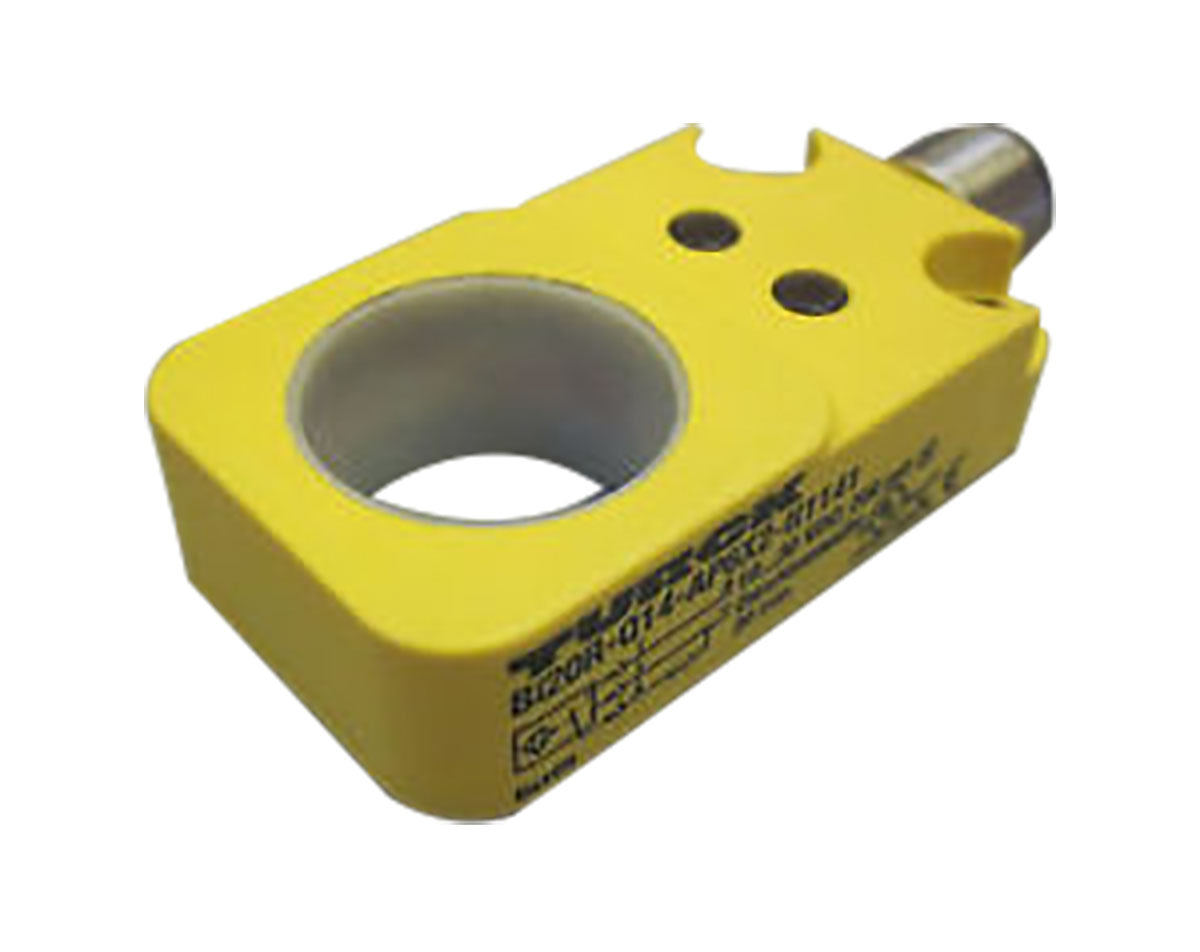

Turck BI20R-Q14-AP6X2-H1141 Proximity Switch Sensor BI20RQ14AP6X2H1141

Description:

The Turck BI20R-Q14-AP6X2-H1141 Proximity Switch is an inductive ring sensor used in industrial automation detection systems. Commonly installed in conveyor systems, packaging lines, and automated assembly equipment for non-contact metal detection. Maintenance teams and system integrators use this part for reliable replacement, retrofit, or system expansion in sensing applications.

Applications:

The Turck BI20R-Q14-AP6X2-H1141 is used for non-contact detection of metallic objects passing through its sensing ring, making it ideal for part counting, wire break detection, and small component monitoring in high-speed production environments. It is commonly applied in packaging machinery, conveyor systems, automotive assembly lines, and electronics manufacturing where precise, wear-free sensing ensures operational efficiency and minimal downtime.

Technical Specifications:

• Manufacturer: Turck
• Model / Part Number: BI20R-Q14-AP6X2-H1141
• Product Type: Inductive Ring Proximity Sensor
• Sensing Method: Inductive (metal detection through ring)
• Ring Inner Diameter: 20 mm
• Housing Design: Rectangular Q14
• Operating Voltage: 10–30 VDC
• Output Type: PNP, Normally Open (NO)
• Electrical Connection: M12 connector
• Protection Rating: IP67
• Housing Material: Glass fiber reinforced plastic (PBT)
• Operating Temperature: -25°C to +70°C
• Switching Frequency: Suitable for low-frequency detection applications

Common Replacements:

• Turck BI15R-Q14-AP6X2-H1141
• Turck BI30R-Q14-AP6X2-H1141
• IFM IGS204 Inductive Ring Sensor
