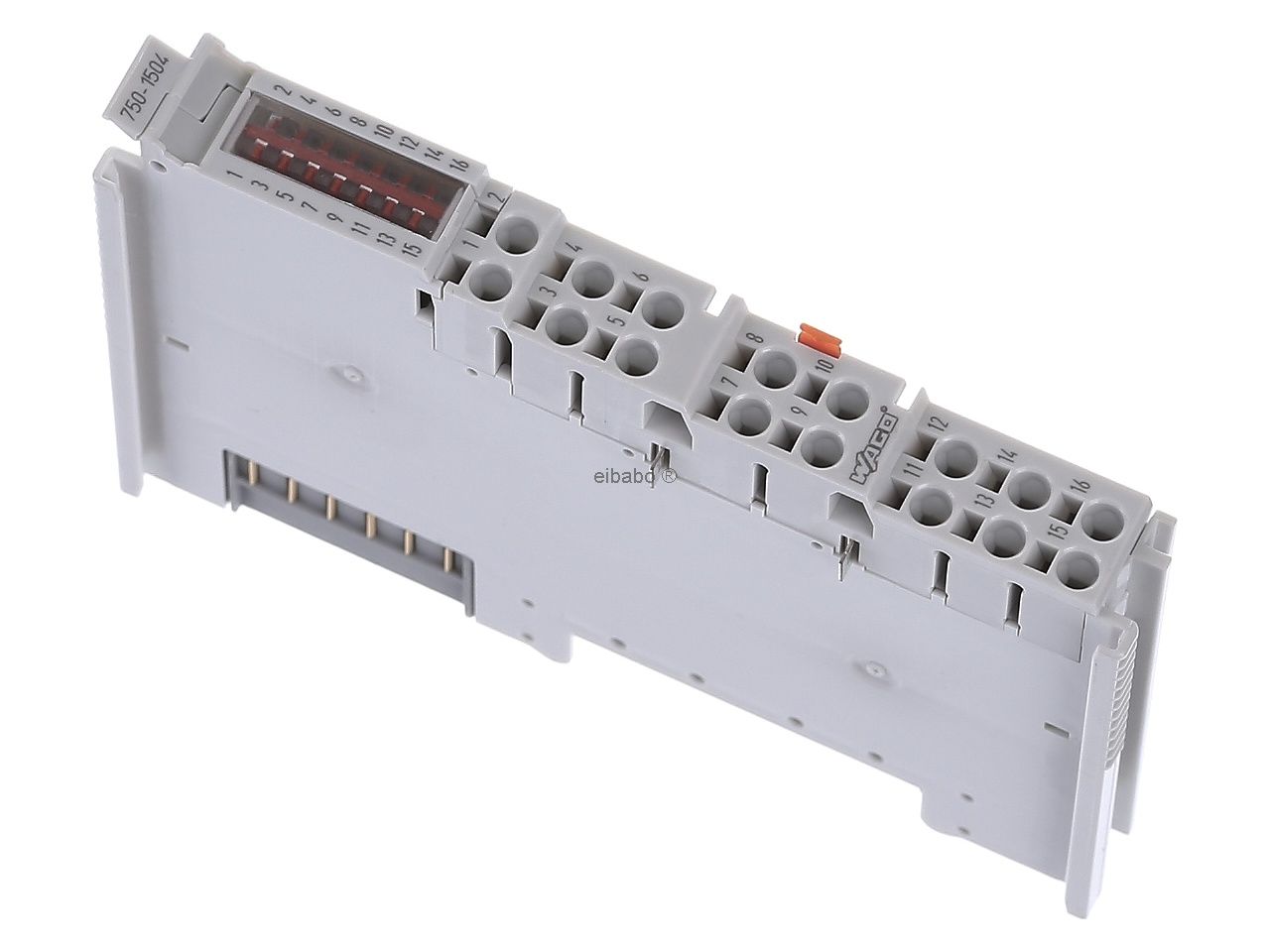

WAGO 750-1504 PLC Module 7501504

Description:

The WAGO 750-1504 PLC Module is a 16-channel digital output module used in distributed industrial automation control systems. Commonly installed in factory automation lines, building management systems, and process control panels for controlling actuators and field devices. Maintenance teams, OEMs, and system integrators use this module for system expansion, replacement, or reliable output signal control in PLC-based applications.

Applications:

The WAGO 750-1504 is designed to transmit digital control signals from PLC systems to field devices such as relays, solenoids, contactors, and indicator lamps. It is widely used in industrial automation, building automation, oil and gas systems, and manufacturing lines where reliable output control is required. Its compact DIN-rail design and compatibility with the WAGO 750 I/O system make it ideal for modular and scalable automation architectures.

Technical Specifications:

• Manufacturer: WAGO
• Model / Part Number: 750-1504
• Product Type: Digital Output PLC Module
• Series: WAGO 750 I/O System
• Number of Outputs: 16 Digital Outputs
• Output Voltage: 24 VDC
• Output Current: 0.5 A per channel
• Mounting Type: DIN Rail
• Termination Type: Spring clamp (CAGE CLAMP®)
• Signal Type: Binary digital output
• Width: Approx. 12 mm
• Isolation: Optocoupler isolation between field and bus
• Operating Temperature: Up to +55°C
• Application Compatibility: Industrial automation and distributed control systems

Common Replacements:

• WAGO 750-1506
• Siemens SM 322 Digital Output Module
• Beckhoff EL2809 Digital Output Module
