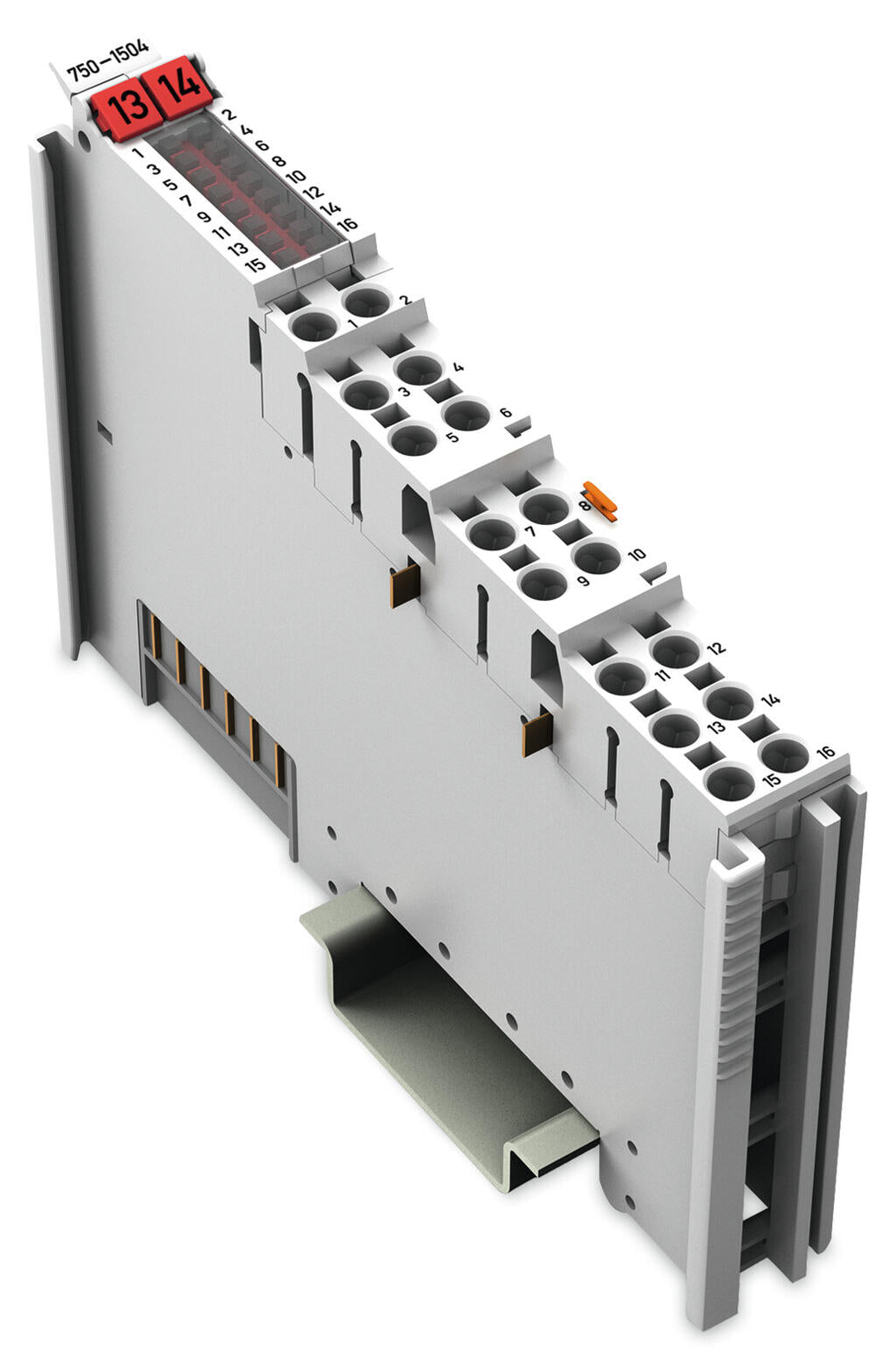

WAGO 750-1504 16-channel Digital Output PLC Module 7501504

Description:

The WAGO 750-1504 PLC Module is a 16-channel digital output module used in distributed industrial automation control systems. Commonly installed in factory automation lines, building management systems, and process control panels for controlling actuators and field devices. Maintenance teams, OEMs, and system integrators use this module for system expansion, replacement, or reliable output signal control in PLC-based applications.

Applications:

The WAGO 750-1504 is designed to transmit digital control signals from PLC systems to field devices such as relays, solenoids, contactors, and indicator lamps. It is widely used in industrial automation, oil and gas systems, building automation, and manufacturing environments where consistent and isolated output control is required. Its compact DIN rail design and compatibility with the WAGO 750 I/O system make it suitable for modular automation setups and scalable control architectures.

Technical Specifications:

• Manufacturer: WAGO
• Model / Part Number: 750-1504
• Product Type: Digital Output PLC Module
• Series: WAGO 750 I/O System
• Number of Outputs: 16 Digital Outputs
• Output Voltage: 24 VDC
• Output Current: 0.5 A per channel
• Mounting Type: DIN Rail
• Termination Type: Spring clamp (CAGE CLAMP®)
• Signal Type: Digital (binary output)
• Width: Approx. 12 mm
• Isolation: Optocoupler isolation between field and bus
• Operating Temperature: Up to +55°C

Common Replacements:

• WAGO 750-1506
• Siemens SM 322 Digital Output Module
• Beckhoff EL2809 Digital Output Module
