Yaskawa

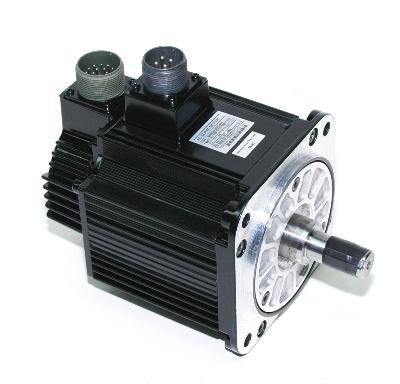

Yaskawa AC Servo Motor SGMGH-09ACA61 (SGMGH09ACA)

Yaskawa AC Servo Motor SGMGH-09ACA61 (SGMGH09ACA)

Condition
Regular price $1,317.00
Regular price Sale price $1,317.00
Sale Sold out
PayPal Google Pay Visa MasterCard Amex Venmo

Description:

The Yaskawa SGMGH-09ACA61 is a high-performance AC servo motor from the SGMGH series, engineered for precision motion control in demanding industrial applications. With a rated output of 850W and a base speed of 1500 RPM, this motor features an absolute encoder and a flange-mount design for easy integration. Known for high torque density, smooth rotation, and fast response, the SGMGH-09ACA61 is ideal for use in CNC machines, packaging systems, and automation equipment where accuracy and reliability are essential.

TECHNICAL SPECIFICATIONS:

Model: SGMGH-09ACA61
Series: SGMGH
Rated Output Power: 850W
Rated Speed: 1500 RPM
Rated Torque: 5.39 Nm
Peak Torque: Approx. 13.5 Nm
Voltage: 200V class
Encoder Type: Absolute encoder (17-bit)
Shaft Type: Straight shaft with keyway and tap
Mounting Type: Flange mount
Insulation Class: F
Protection Class: IP67 (motor body), IP65 (shaft area)
Cooling Method: Natural convection
Compatible Servo Drives: Yaskawa SGDH series
Weight: Approx. 6.5 kg (14.3 lbs)
