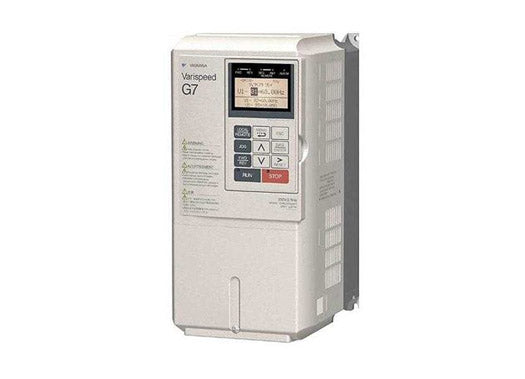

Yaskawa CIMR-G7A23P7 General Purpose Varispeed G7 Inverter 3PH 200V 3.7KW CIMRG7A23P7

Description:

The Yaskawa CIMR-G7A23P7 is a 3.7 kW (5 HP) 3-phase 230V AC drive from the G7 series, known for its advanced motor control capabilities and high reliability. Designed for heavy-duty industrial applications, it features Yaskawa’s patented 3-level inverter technology to reduce motor stress and extend motor life. The G7 series provides precise vector control, making this drive ideal for applications requiring smooth torque delivery and high-speed accuracy.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: CIMR-G7A23P7
Series: G7
Type: AC Variable Frequency Drive (VFD)
Input Voltage: 3-phase 200–240V AC
Output Power: 3.7 kW (5 HP)
Rated Output Current: 17.5 A
Frequency Range: 0.1 to 400 Hz
Control Type: V/f, Open Loop Vector, and Flux Vector Control
Inverter Type: 3-Level Transistor Inverter
Enclosure: IP20 (Open Type)
Display: Digital LED keypad (removable)
Braking: Built-in braking transistor
Communication Options: Optional (Modbus, DeviceNet, Profibus, etc.)
Use Case: Pumps, fans, conveyors, mixers, compressors, and high-performance machinery
