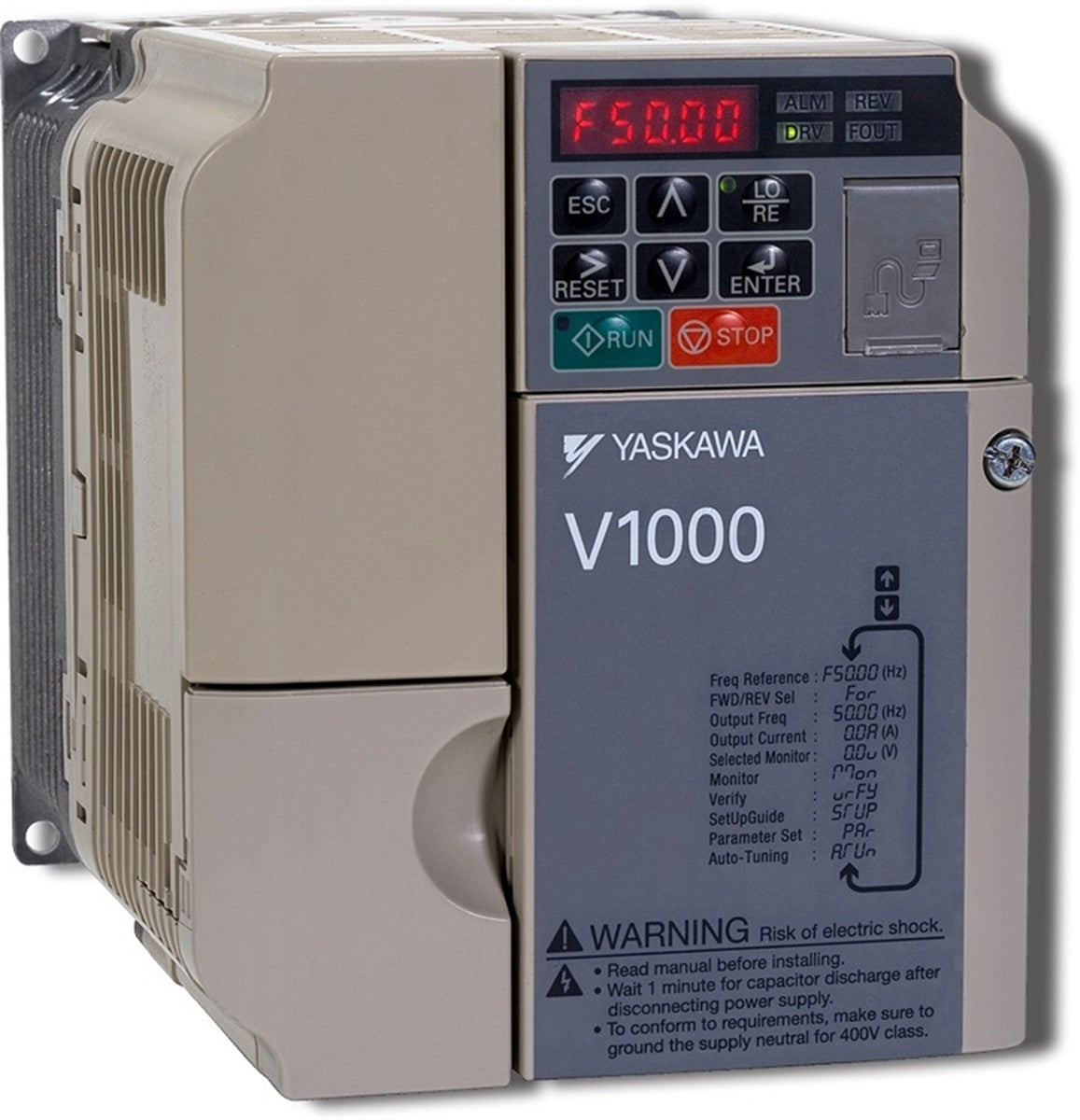

Yaskawa CIMR-VB4A0038FAA Inverter 18.5KW/15KW 380V CIMRVB4A0038FAA

Description:

The Yaskawa CIMR-VB4A0038FAA is a variable frequency drive (VFD) from the V1000 series, engineered for reliable control of three-phase AC induction motors. Rated at 25 HP and optimized for 480V applications, this compact VFD provides precise speed control, energy savings, and robust motor protection. It supports sensorless vector control and is ideal for conveyors, fans, pumps, and general industrial automation needs.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: CIMR-VB4A0038FAA
Series: V1000
Type: AC Variable Frequency Drive (VFD)
Input Voltage: 380–480V AC, 3-phase
Output Current: 38A
Horsepower Rating: 25 HP
Frequency Range: 0.01 to 400 Hz
Control Method: V/f Control, Open Loop Vector, and Advanced Sensorless Vector
Overload Capacity: 150% for 60 seconds
Enclosure: NEMA 1
Interface: Digital operator keypad, optional communication modules (e.g., Modbus, EtherNet/IP)
Mounting: Wall or panel mount
Application: Fans, pumps, conveyors, mixers, and industrial machines
