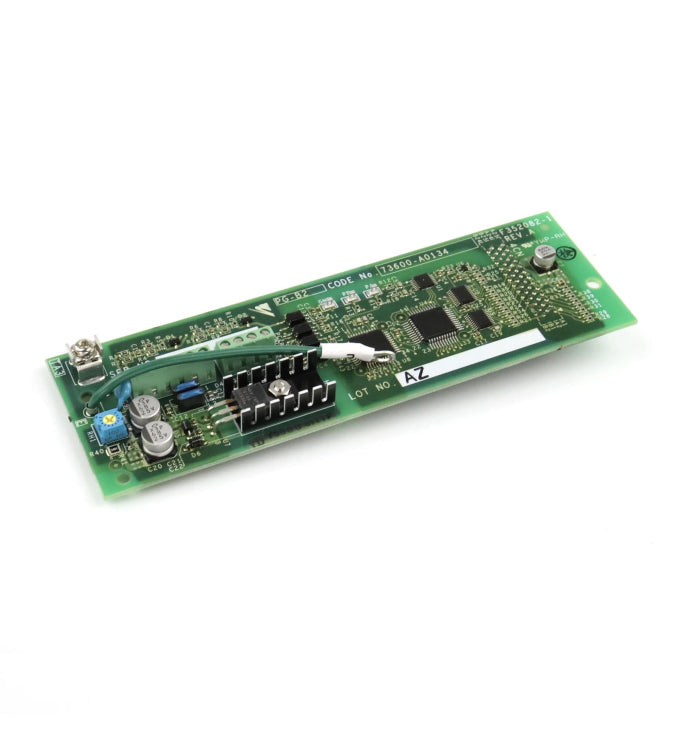

Yaskawa PG-B2 Speed Controller Card PGB2

Description:

The Yaskawa PG-B2 Speed Controller Card is used in Yaskawa inverter drive systems for encoder feedback processing and precise motor speed control. Commonly installed in variable frequency drives controlling conveyors, elevators, machine tools, and automated production equipment requiring accurate speed regulation. Maintenance teams, OEMs, and system integrators use this part for drive repair, feedback system integration, retrofits, and replacement of faulty option cards.

Applications:

The Yaskawa PG-B2 card is used in industrial automation systems where closed-loop speed control is required. It is applied in material handling systems, hoisting equipment, packaging machinery, and precision manufacturing processes, enabling accurate motor speed feedback from encoders to improve performance, stability, and positioning accuracy.

Technical Specifications:

• Manufacturer: Yaskawa
• Part Number: PG-B2
• Product Type: Encoder Feedback / Speed Controller Card
• Function: Encoder Signal Processing for Closed-Loop Control
• Compatible Drives: Yaskawa VFDs with option card support (G5, F7, etc.)
• Encoder Type: Incremental Encoder Input
• Signal Input: A/B/Z Phase Signals
• Voltage Supply: Provided by Drive
• Mounting: Internal Drive Option Slot
• Interface: Dedicated Drive Communication Bus
• Application: Motor Speed Feedback and Control
• Operating Temperature: 0 to 50°C

Common Replacements:

• Yaskawa PG-X2
• Yaskawa PG-W2
• Yaskawa PG-B3
