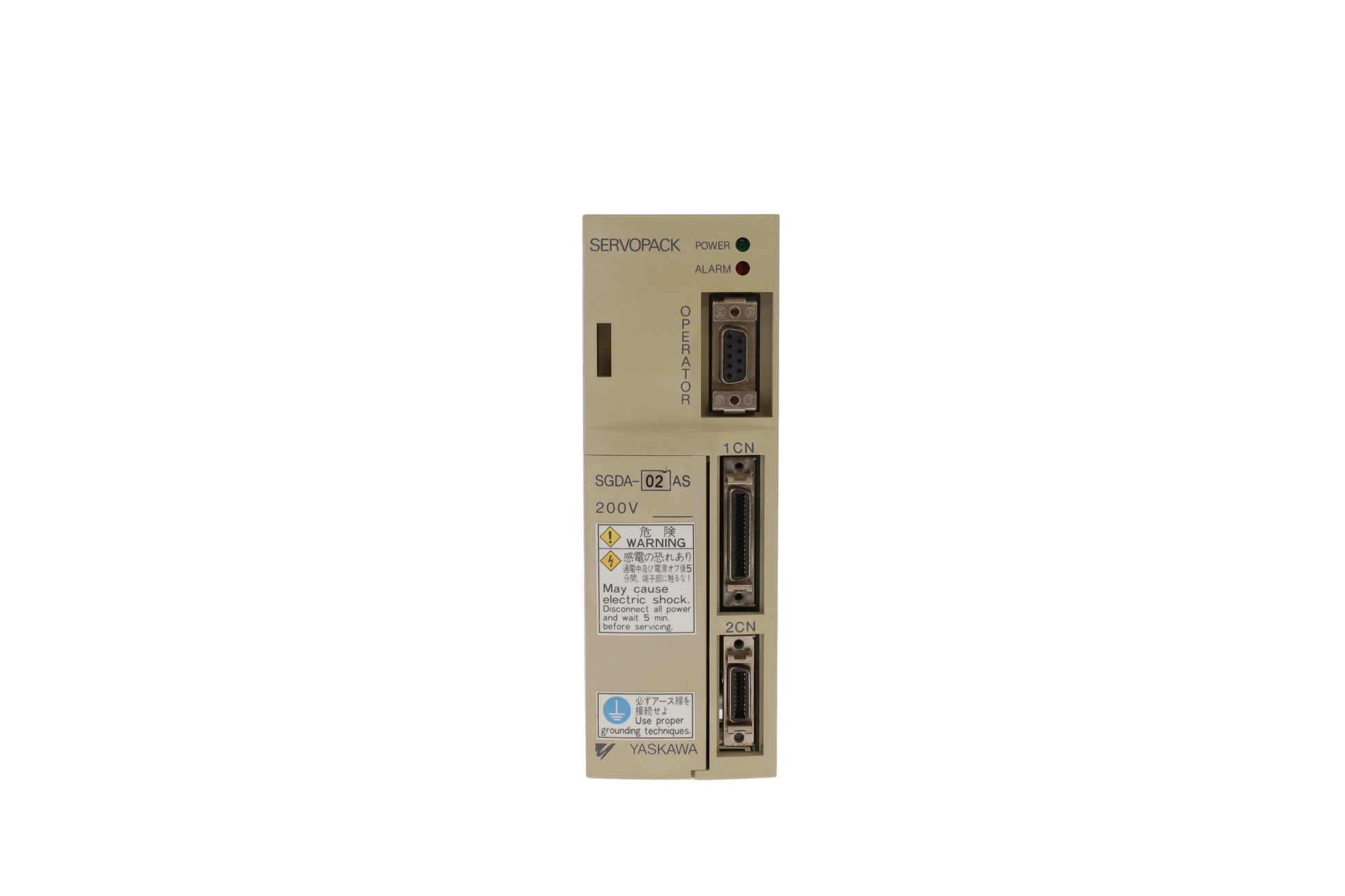

Yaskawa SGDA-02AS Servo Drive SGDA02AS

Description:

The Yaskawa SGDA-02AS is a compact AC servo drive from the SERVOPACK series, designed to control servo motors in high-precision motion applications. It offers reliable performance, easy setup, and smooth operation for tasks requiring accurate speed and position control. This model is commonly used in automation systems, robotics, and CNC machinery, and supports analog voltage or pulse train input control.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: SGDA-02AS
Type: AC Servo Drive (SERVOPACK)
Input Voltage: 200–230V AC, single-phase
Output Power: 200W
Control Method: Analog voltage or pulse train input
Compatible Motors: Yaskawa SGM series (200W class)
Frequency: 50/60 Hz
Communication: Standard I/O interface (no serial communication on this model)
Mounting: Panel mount
Dimensions: Approx. 3.15 x 7.09 x 5.91 in (80 x 180 x 150 mm)
Weight: Approx. 2.6 lbs (1.2 kg)
Use Case: Ideal for light-duty automation, conveyors, pick-and-place systems, and small CNC machinery
