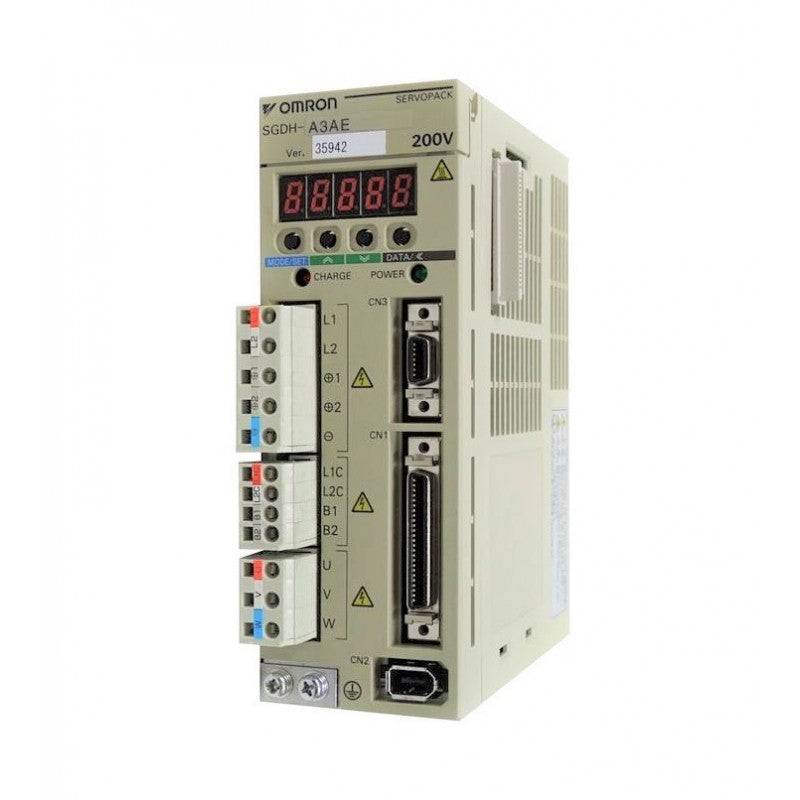

Yaskawa SGDH-A3AE Servo Drive SGDHA3AE

Description:

SGDHA3AE DISCONTINUED BY MANUFACTURER SERVO DRIVE SERVO AMPLIFIER 200 V 30 W 1 PHASE 50/60 HZ 0.82 A The Yaskawa SGDH-A3AE is a highly reliable and versatile servo drive designed for precision motion control in demanding industrial applications. Featuring advanced digital signal processing and high-performance control algorithms, this drive ensures exceptional speed, torque, and positioning accuracy. Its robust construction and comprehensive set of features, including built-in safety functions and communication interfaces, make it well-suited for a wide range of automation tasks. The SGDH-A3AE integrates seamlessly with Yaskawa’s servo motors and other automation components, offering easy setup and reliable performance to meet the needs of sophisticated control systems.

Technical Specifications:

• Model: SGDH-A3AE
• Type: AC Servo Drive
• Rated Output Current: 3 A
• Rated Voltage: 200-230 V AC, Single-phase
• Power Supply Frequency: 50/60 Hz
• Control Method: Vector control with encoder feedback
• Communication Protocols: Option boards for various fieldbus protocols (e.g., RS-232, RS-485)
• Safety Functions: Safe Torque Off (STO)
• Cooling Method: Forced air cooling
• Protection Rating: IP20
• Mounting: Panel mount
• Operating Temperature Range: 0 to 40°C (32 to 104°F)
• Weight: Approximately 2.3 kg (5.1 lbs)
• Dimensions: 165 mm x 140 mm x 200 mm (6.5 in x 5.5 in x 7.9 in)
