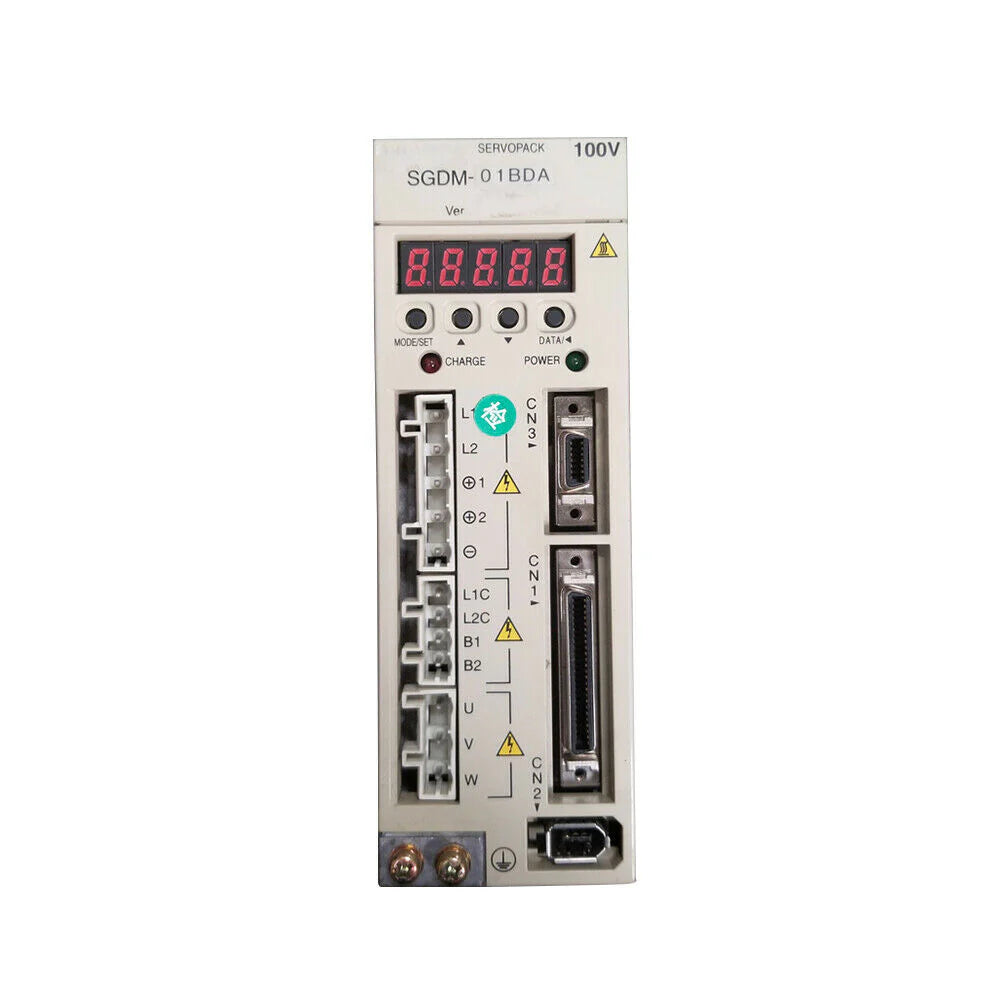

Yaskawa SGDM-01BDA Servo Drive SGDM01BDA

DESCRIPTION
The Yaskawa SGDM-01BDA is a Sigma II series AC servo drive designed for precise motion control in automation systems. It supports analog voltage and pulse train input for flexible integration with motion controllers and PLCs. Rated for 100W output power, this servo amplifier delivers high responsiveness and accuracy, making it ideal for small to mid-size machinery, robotics, and positioning applications.

TECHNICAL SPECIFICATIONS
Model Number: SGDM-01BDA
Series: Sigma II
Drive Type: AC Servo Amplifier
Control Type: Analog voltage / pulse train input
Rated Power Output: 100W (0.1 kW)
Input Voltage: 200–230V AC, single-phase
Output Voltage: 3-phase 0–230V AC
Rated Output Current: Approx. 0.8 A
Frequency: 50/60 Hz
Compatible Motors: Yaskawa SGM-01/02 series or similar 100W Sigma II motors
Feedback: Incremental encoder feedback
Protective Functions: Overcurrent, overvoltage, undervoltage, overload, overheat
Communication: RS-232/RS-422 for parameter setting and monitoring
Mounting: Panel mount
Ambient Temperature: 0°C to 55°C (non-condensing)
Enclosure Rating: IP20 (open type)
Dimensions: Approx. 130 x 60 x 160 mm (H x W x D)
Weight: Approx. 1.2 kg
Manufacturer: Yaskawa Electric Corporation
