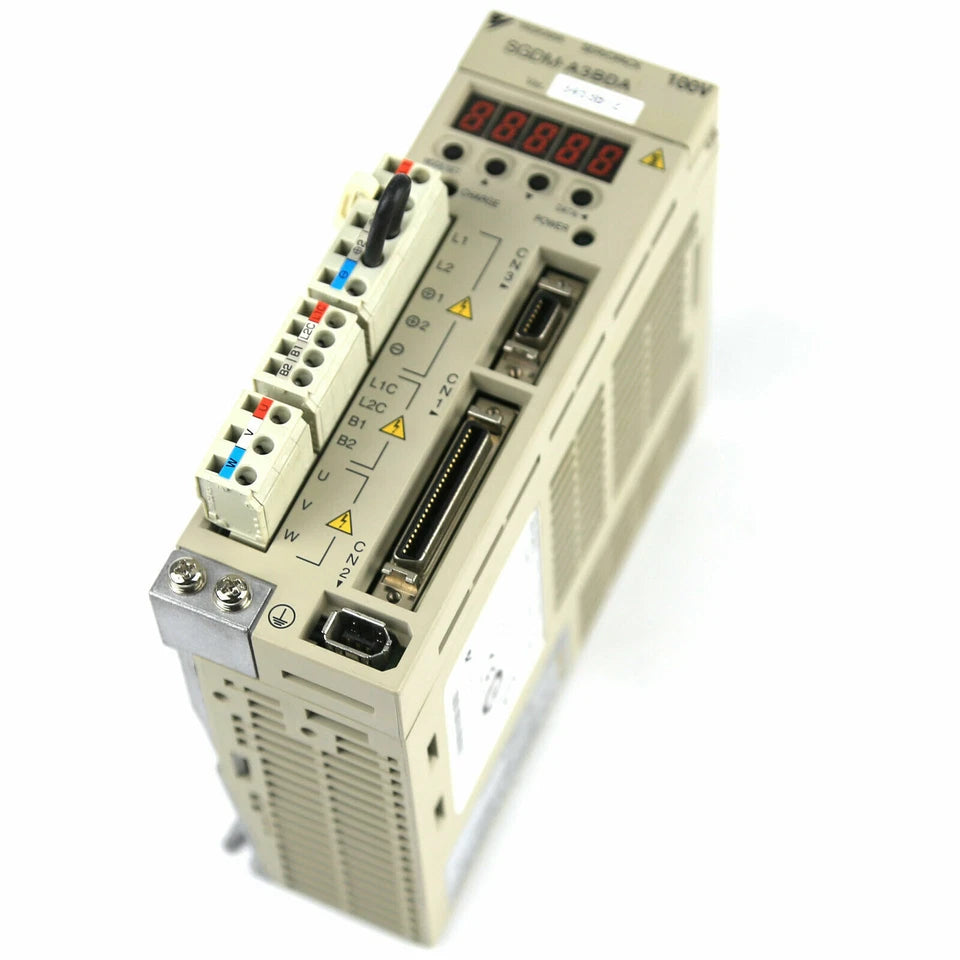

Yaskawa SGDM-A3BDA Servo Drive SGDMA3BDA

Description:

SGDMA3BDA SERVO DRIVE SERVOPACK 0.03 KW RATED OUTPUT 0.15 KVA 32/30 AMP SINGLE PHASE 100 V EBARA C5102-018-0001 The Yaskawa SGDM-A3BDA is a high-performance AC servo drive tailored for demanding motion control applications. Renowned for its precision and reliability, this drive supports advanced vector control technology and is designed to offer exceptional speed, torque, and positioning accuracy. The SGDM-A3BDA integrates seamlessly with Yaskawa's servo motors, providing robust performance and efficient control in various industrial settings. It features a user-friendly interface, enabling straightforward configuration and operation, while its durable construction ensures longevity and stable operation even in challenging environments. With support for a range of communication protocols, it is versatile and adaptable to diverse automation needs.

Technical Specifications:

• Model: SGDM-A3BDA
• Type: AC Servo Drive
• Rated Output Current: 3 A
• Rated Voltage: 200-230 V AC, Single-phase
• Power Supply Frequency: 50/60 Hz
• Control Method: Vector control with encoder feedback
• Communication Protocols: Optional communication boards for fieldbus protocols (e.g., RS-232, RS-485)
• Safety Functions: Includes Safe Torque Off (STO) for enhanced operational safety
• Cooling Method: Forced air cooling
• Protection Rating: IP20 (suitable for indoor use)
• Mounting: Panel mount
• Operating Temperature Range: 0 to 40°C (32 to 104°F)
• Weight: Approximately 2.5 kg (5.5 lbs)
• Dimensions: 165 mm x 140 mm x 200 mm (6.5 in x 5.5 in x 7.9 in)
