Yaskawa SGM7G-20AFC6C AC Servo Motor SGM7G20AFC6C

Description:

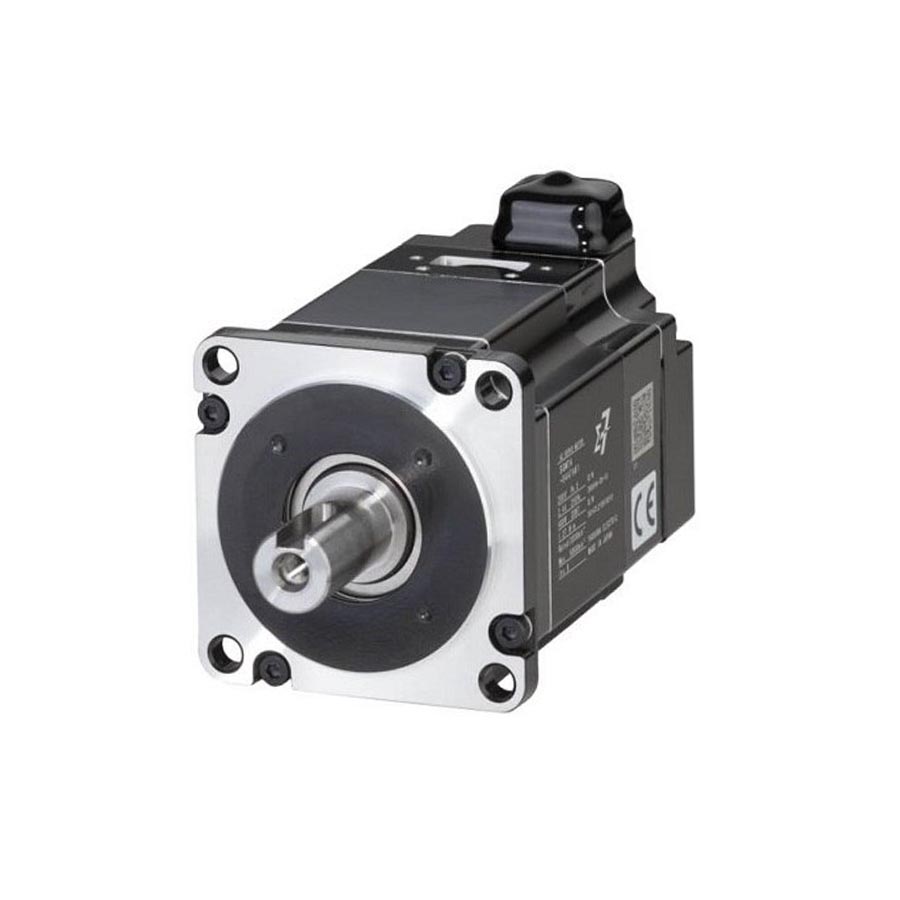

The Yaskawa SGM7G-20AFC6C AC servo motor is used in advanced industrial motion control systems for high-power, high-precision speed and position control in automated machinery. Commonly installed in CNC machines, robotics, heavy-duty packaging equipment, and automated production lines. Maintenance teams, OEMs, and system integrators use this part for machine repair, retrofit, replacement, and high-performance motion system upgrades.

Applications:

The Yaskawa SGM7G-20AFC6C servo motor is widely used in demanding industrial environments requiring high torque, fast response, and precision control. It is typically deployed in large CNC machining centers, robotic automation systems, material handling equipment, conveyor systems, and assembly lines where consistent performance, accurate positioning, and dynamic motion control are critical.

Technical Specifications:

• Brand: Yaskawa
• Part Number: SGM7G-20AFC6C
• Product Type: AC Servo Motor
• Series: Sigma-7 (SGM7G Series)
• Rated Output: 2.0 kW
• Voltage Class: 200 VAC
• Rated Speed: 1500 RPM
• Encoder Type: Absolute encoder (high-resolution)
• Mounting Type: Flange mount
• Cooling Method: Self-cooled
• Shaft Type: Straight shaft with keyway
• Protection Rating: IP-rated industrial enclosure
• Application: High-power industrial automation and motion control

Common Replacements:

• Yaskawa SGM7G-20AFC6S
• Yaskawa SGM7G-20AFC6E
• Yaskawa SGMJV-22ADA6C
