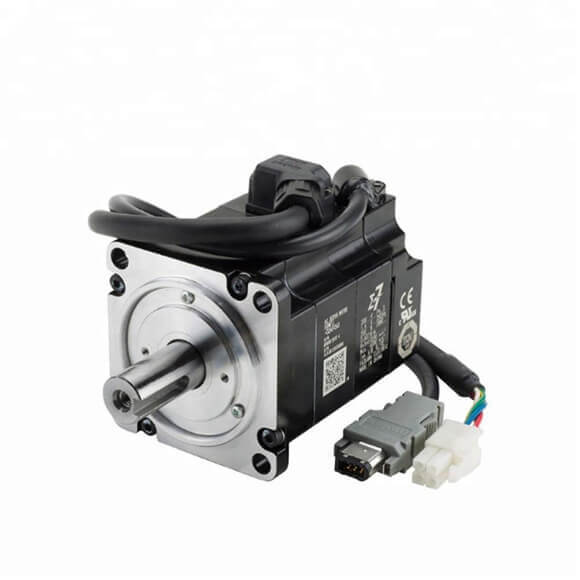

Yaskawa SGM7J-02AFC6S Servo Motor SGM7J02AFC6S

Description:

The Yaskawa SGM7J-02AFC6S is a 200W AC servo motor from the Sigma-7 series, designed for precise motion control in compact machinery. Known for its high torque density, low inertia, and smooth performance, this brushless servo motor features a 24-bit absolute encoder and is built to deliver outstanding accuracy, responsiveness, and efficiency in automation systems.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: SGM7J-02AFC6S
Series: Sigma-7
Motor Type: AC Servo Motor (Low Inertia)
Rated Power: 200W
Rated Torque: 0.64 Nm
Peak Torque: Approx. 2.03 Nm
Rated Speed: 3,000 RPM
Maximum Speed: 6,000 RPM
Voltage: 200V class
Encoder: 24-bit Absolute Encoder
Mounting Type: Flange mount
Shaft Type: Straight shaft with key and tap
Brake: No holding brake
Protection Class: IP67 (motor body)
Application: Semiconductor equipment, robotics, packaging machines, precision automation
