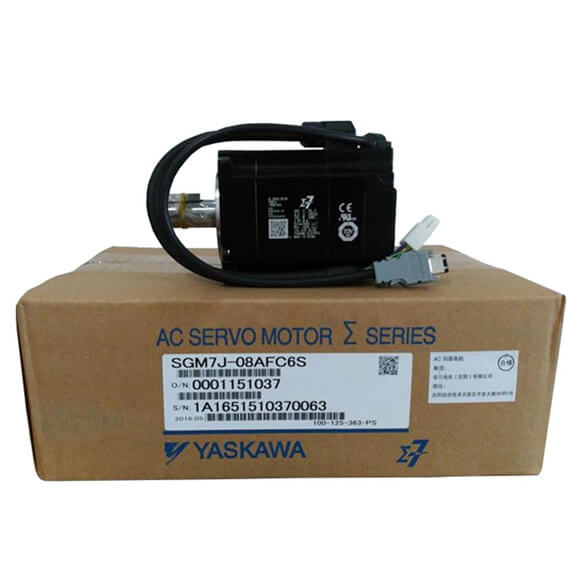

Yaskawa SGM7J-08AFC6S Servo Motor SGM7J08AFC6S

Description:

The Yaskawa SGM7J-08AFC6S is a 750W AC servo motor from the SGM7J series, offering high inertia and precision for demanding automation environments. It delivers exceptional torque accuracy and responsiveness, making it ideal for positioning tasks in packaging machines, assembly lines, and semiconductor equipment. This model features a 24-bit absolute encoder, straight shaft with keyway, and flange mount configuration for easy integration.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: SGM7J-08AFC6S
Series: SGM7J
Type: AC Servo Motor
Rated Power: 750W
Rated Voltage: 200V AC
Rated Speed: 3000 RPM
Maximum Speed: 6000 RPM
Rated Torque: 2.39 Nm
Peak Torque: 7.16 Nm
Encoder: 24-bit absolute
Shaft Type: Straight shaft with key
Mounting: Flange
Brake: No
Protection Rating: IP67 (motor body)
Application: Precision automation, robotics, CNC, packaging machinery
