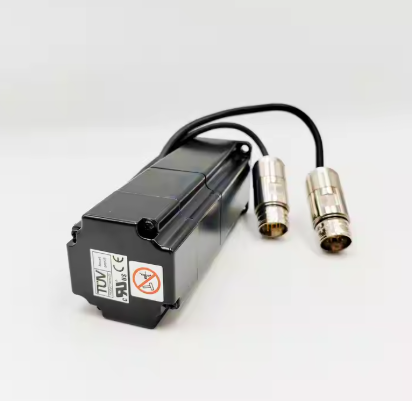

Yaskawa SGMAH-01AAF41 Servo Motor SGMAH01AAF41

Description:

The Yaskawa SGMAH-01AAF41 is a 100W AC servo motor from the Sigma-II series, known for its compact size, low inertia, and high responsiveness. This model includes a straight shaft without a key, a 131,072-pulse/rev incremental encoder, and is designed for high-speed precision positioning in applications like small automation systems, lab equipment, and light-duty industrial machinery.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: SGMAH-01AAF41
Series: Sigma-II
Type: AC Servo Motor
Rated Power: 100W
Rated Voltage: 200V AC
Rated Speed: 3000 RPM
Maximum Speed: 5000 RPM
Rated Torque: 0.318 Nm
Peak Torque: ~0.95 Nm
Encoder: 131,072 pulse/rev incremental encoder
Shaft Type: Straight (no key)
Mounting: Flange
Brake: No
Protection Rating: IP65
Application: Compact automation systems, robotics, precision machinery
