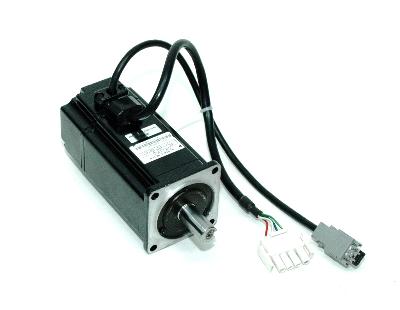

Yaskawa SGMAH-04AAF41 Servo Motor SGMAH04AAF41

DESCRIPTION
The Yaskawa SGMAH-04AAF41 is a 400W servo motor from the Sigma II series, engineered for high-performance motion control in compact automation systems. Designed for precision and efficiency, this motor features a low-inertia rotor, enabling fast acceleration and deceleration. It includes a straight shaft with key, operates at 200V, and runs at a rated speed of 3000 RPM. Equipped with a 131072 pulse/rev incremental encoder, the SGMAH-04AAF41 is ideal for applications requiring high responsiveness and accurate positioning.

TECHNICAL SPECIFICATIONS
Model: SGMAH-04AAF41
Series: Sigma II
Rated Output: 400W (0.4 kW)
Rated Voltage: 200V AC
Rated Speed: 3000 RPM
Maximum Speed: 5000–6000 RPM
Shaft Type: Straight with key
Encoder Type: Incremental, 131072 pulses/rev (17-bit)
Rotor Type: Low inertia
Mounting Type: Flange-mounted
Cooling Method: Natural convection
Protection Rating: IP65 (excluding shaft and connectors)
Brake: None (as indicated by the "F41" suffix – brake not included)
Compatible Drives: Sigma II SGDH series servo amplifiers
