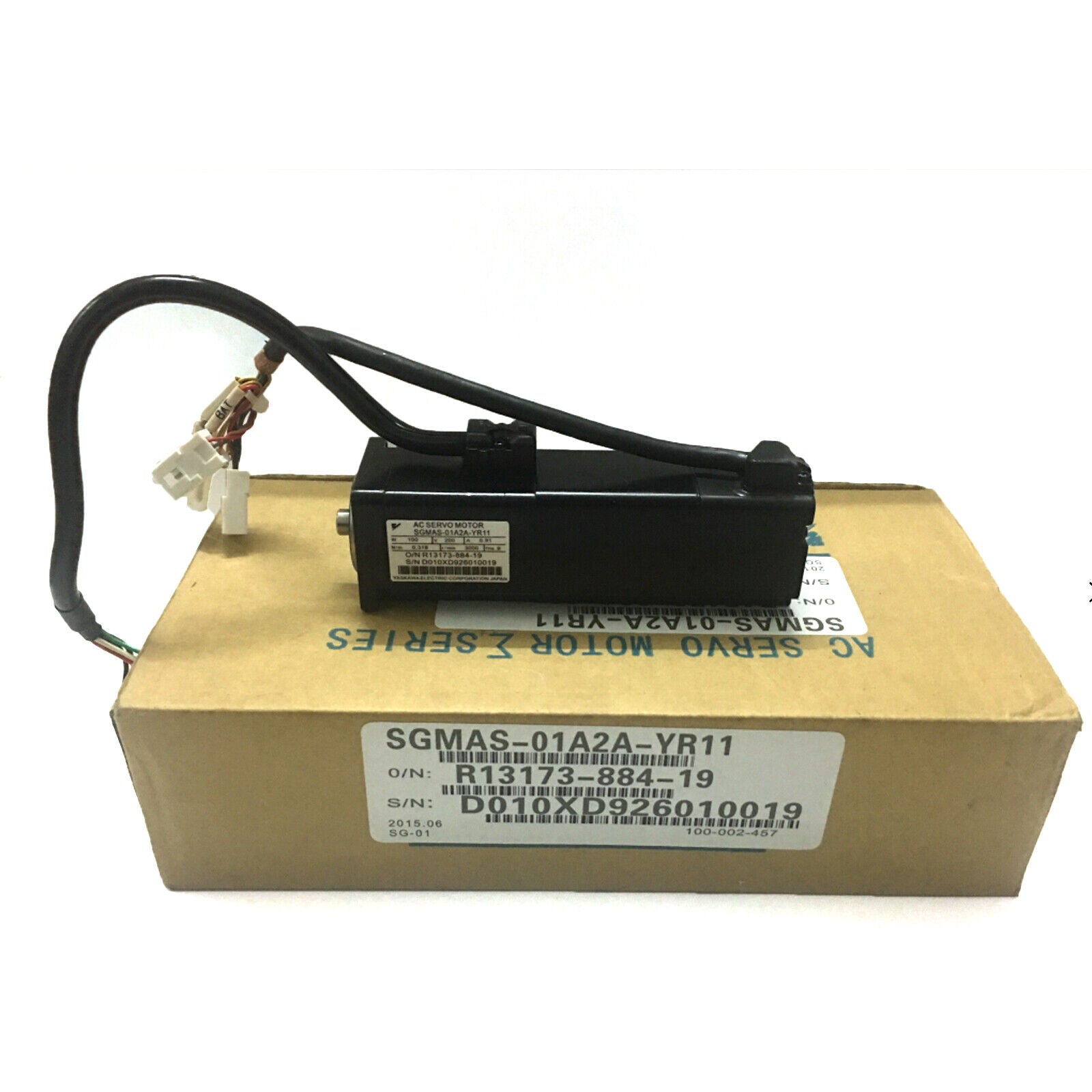

Yaskawa SGMAS-01A2A-YR11 Servo Motor SGMAS01A2AYR11

Description:

The Yaskawa SGMAS-01A2A-YR11 is a 100W AC servo motor from the Sigma II series, designed for high-precision motion control in compact machinery. With a 200V input, 17-bit serial encoder, and a low-inertia build, this motor provides quick acceleration and reliable feedback. It's ideal for semiconductor equipment, electronic assembly lines, and precision automation systems.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: SGMAS-01A2A-YR11
Series: Sigma II
Type: AC Servo Motor
Rated Power: 100W
Rated Voltage: 200V AC
Rated Speed: 3,000 RPM
Maximum Speed: 5,000 RPM
Rated Torque: 0.32 Nm
Peak Torque: ~0.96 Nm
Encoder: 17-bit serial encoder
Shaft: Straight with key
Brake: No
Mounting: Flange mount
Protection Class: IP55
Cooling Method: Natural convection
Application: Compact automation, medical devices, small pick-and-place systems
