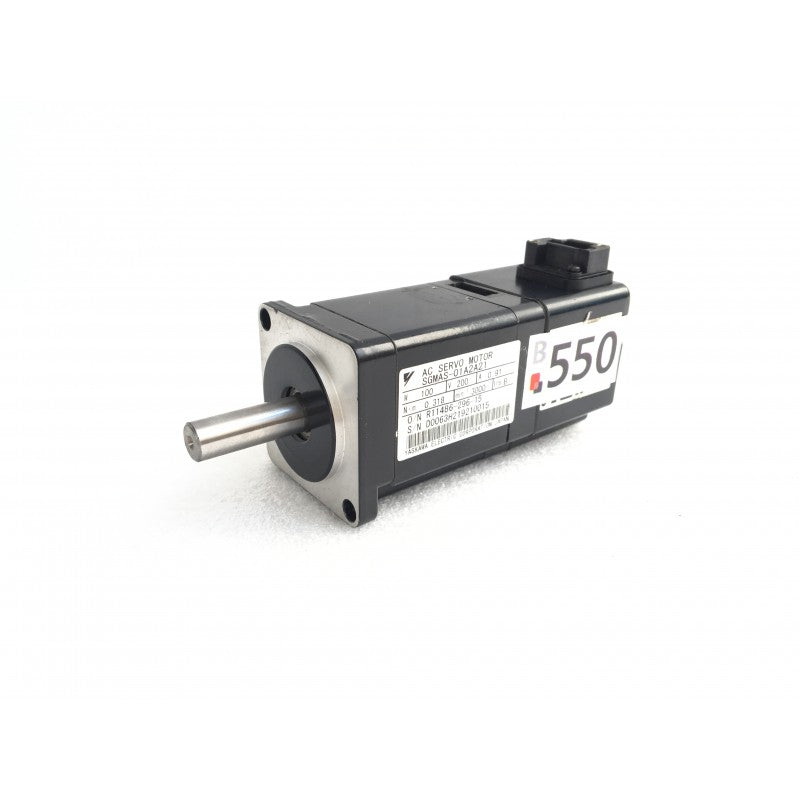

Yaskawa SGMAS-01A2A21 Servo Motor SGMAS01A2A21

Description:

The Yaskawa SGMAS-01A2A21 servo motor is used in industrial automation systems for precise motion control and positioning. Commonly installed in CNC machines, robotics, packaging equipment, and automated production lines requiring high accuracy and repeatability. Maintenance teams, OEMs, and system integrators use this part for machine repair, system upgrades, retrofit projects, and maintaining motion control performance.

Applications:

The Yaskawa SGMAS-01A2A21 servo motor is widely used in industrial environments requiring precise speed, torque, and position control. It is ideal for applications such as CNC machining, pick-and-place systems, conveyor automation, packaging machinery, and robotics, delivering stable operation, fast response, and high positioning accuracy.

Technical Specifications:

• Model: SGMAS-01A2A21
• Product Type: AC Servo Motor
• Rated Output: 100W
• Rated Voltage: 200V class
• Rated Speed: 3000 RPM
• Encoder Type: Incremental encoder
• Shaft Type: Straight shaft
• Mounting Type: Flange mount
• Protection Rating: IP65 (excluding shaft opening)
• Insulation Class: Class F
• Cooling Method: Self-cooled
• Compatibility: Yaskawa Sigma series servo drives

Common Replacements:

• Yaskawa SGMAS-01A2A41 Servo Motor
• Yaskawa SGMAS-02A2A21 Servo Motor
• Yaskawa SGMAH-01AAA21 Servo Motor
