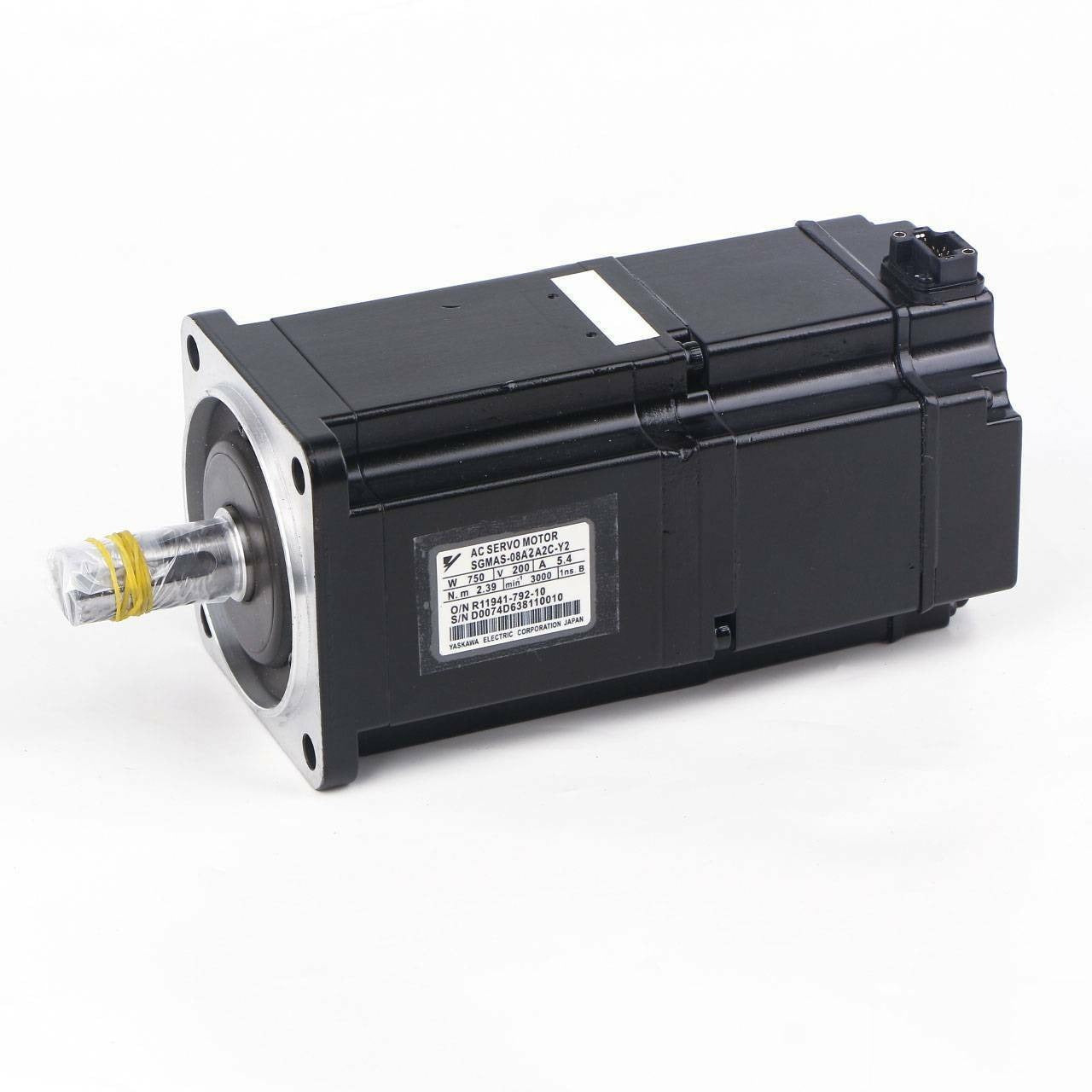

Yaskawa SGMAS-08A2A2C-Y2 Servo Motor SGMAS08A2A2CY2

DESCRIPTION
The Yaskawa SGMAS-08A2A2C-Y2 is a 750W AC servo motor from the Sigma II series, engineered for precision motion control in compact industrial machinery. This motor delivers high torque at low inertia, making it ideal for fast acceleration/deceleration applications. It features a straight shaft with key, a 131072-pulse/rev incremental encoder, and operates at a rated speed of 3000 RPM. The motor is designed for flange mounting and is compatible with Yaskawa's Sigma II SERVOPACK amplifiers for optimal performance.

TECHNICAL SPECIFICATIONS
Model: SGMAS-08A2A2C-Y2
Series: Sigma II
Rated Output: 750W (0.75 kW)
Rated Voltage: 200V AC
Rated Speed: 3000 RPM
Max Speed: 5000–6000 RPM (depends on load and application)
Shaft Type: Straight with key
Encoder Type: Incremental, 131072 pulses/rev (17-bit)
Mounting Type: Flange-mounted
Protection Rating: IP65 (excluding shaft and connectors)
Cooling: Natural convection
Brake: No holding brake
Motor Type: Low inertia, AC servo
Application: Ideal for packaging, robotics, printing, and machine tools
