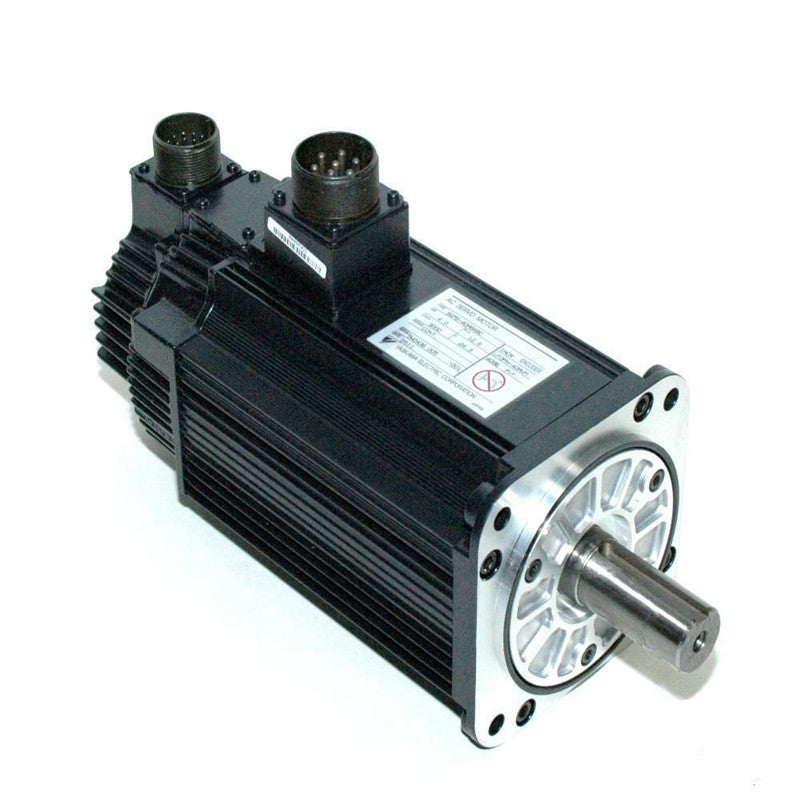

Yaskawa SGMAV-04A3A6C Servo Motor SGMAV04A3A6C

DESCRIPTION
The Yaskawa SGMAV-04A3A6C is a compact, high-performance AC servo motor from the Sigma-II Series, delivering 400 watts of power. It features a 200V power supply and is equipped with a 20-bit absolute encoder for precise feedback and positioning. Designed for demanding motion control applications such as robotics, packaging, and machine tools, this motor offers fast response, low inertia, and reliable operation. The “C” suffix indicates a straight shaft with a key and oil seal, ideal for use in applications where sealing against contaminants is necessary.

TECHNICAL SPECIFICATIONS
Model: SGMAV-04A3A6C
Manufacturer: Yaskawa
Series: Sigma-II
Power Rating: 400W
Rated Speed: 3000 RPM
Max Speed: 5000 RPM
Voltage: 200V AC
Rated Torque: Approx. 1.27 Nm
Max Torque: Approx. 3.82 Nm
Encoder Type: 20-bit absolute encoder
Mounting Type: Flange mount
Shaft: Straight with key and oil seal
Protection: IP65 (excluding shaft-through area)
Insulation Class: Class F
Cooling Method: Natural cooling (self-cooled)
