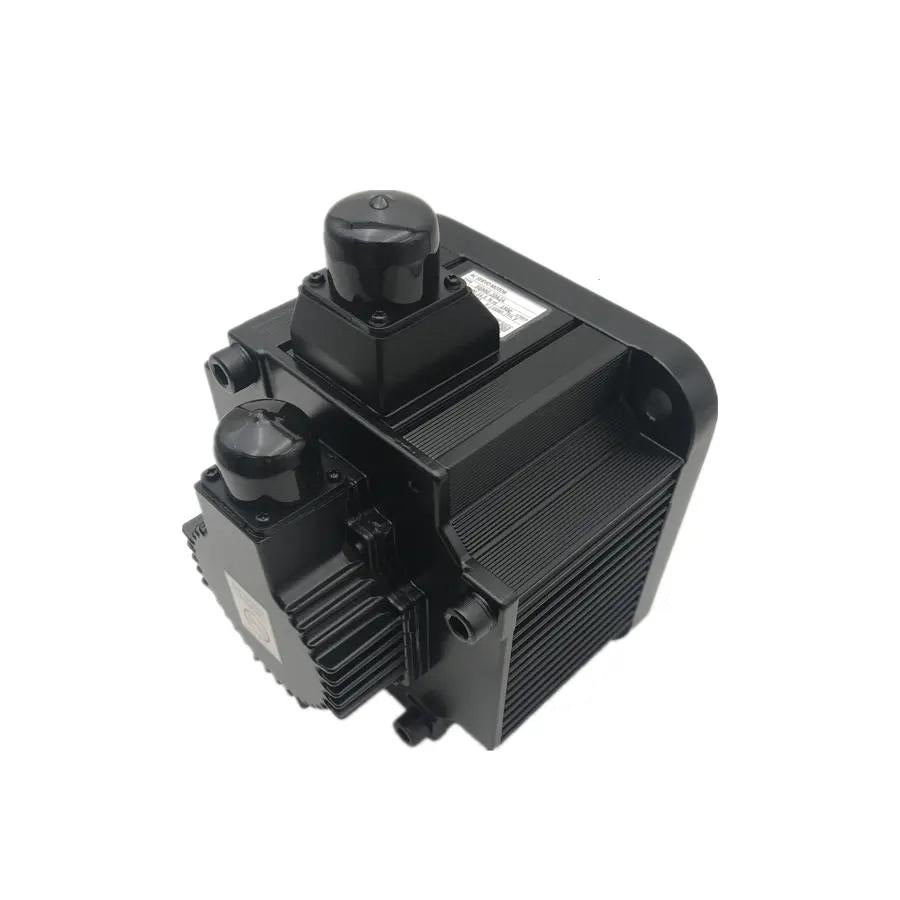

Yaskawa SGMG-20A2 Allen-Bradley Servo Motor SGMG20A2

Description:

SGMG20A2AB DISCONTINUED BY MANUFACTURER SERVO MOTOR W/ENCODER 1500RPM 1 6.7AMP 1.5NM The Yaskawa SGMG-20A2 is a high-performance AC servo motor designed to deliver precise and reliable motion control in various industrial automation settings. With its advanced design, this motor provides exceptional torque and speed capabilities, making it ideal for applications that demand high accuracy and smooth operation. The SGMG-20A2 features advanced feedback mechanisms to ensure accurate position and speed control, enhancing the performance of automated systems. Its robust construction and compact size allow for easy integration into space-constrained environments while maintaining durability and efficiency.

Technical Specifications:

• Model: SGMG-20A2
• Type: AC Servo Motor
• Rated Output Power: 2.0 kW (2.68 HP)
• Rated Voltage: 200-230 V AC
• Rated Current: 8.0 A
• Rated Speed: 3000 RPM
• Maximum Speed: 4000 RPM
• Rated Torque: 6.3 Nm (4.6 lb-ft)
• Feedback Device: Incremental Encoder
• Frame Size: 130 mm
• Insulation Class: Class F
• Protection Rating: IP65 (Dust-tight and protected against water jets)
• Weight: Approximately 11.0 kg (24.3 lbs)
• Connector Type: Standard 15-pin connector
• Operating Temperature Range: 0 to 40°C (32 to 104°F)
