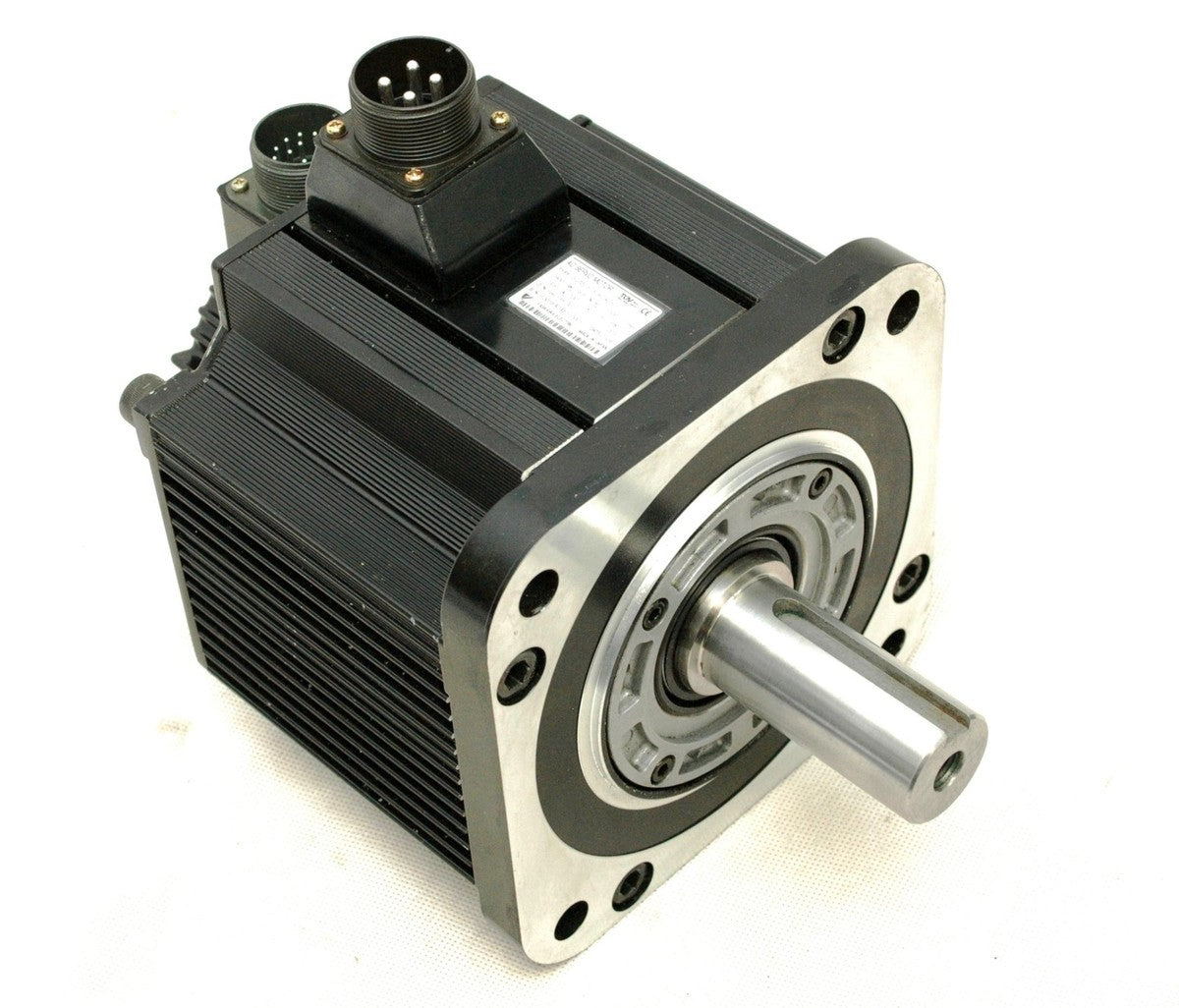

Yaskawa SGMGH-30ACA6S AC Servo Motor SGMGH30ACA6S

Description:

The Yaskawa SGMGH-30ACA6S is a 3.0 kW AC servo motor from the Sigma II series, built for high-performance motion control in industrial automation systems. It features a medium-inertia rotor, a 131,072-pulse incremental encoder for precise speed and position control, and a straight shaft with key and oil seal. Designed for compatibility with Sigma II servo drives, it excels in machine tools, robotics, and material handling equipment.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: SGMGH-30ACA6S
Series: Sigma II
Type: AC Servo Motor
Rated Power: 3.0 kW
Rated Voltage: 200V AC
Rated Speed: 1500 RPM
Maximum Speed: 3000 RPM
Rated Torque: 19.1 Nm
Peak Torque: ~57.3 Nm
Encoder: Incremental (131,072 pulses/rev)
Shaft Type: Straight with key and oil seal
Mounting: Flange
Brake: No
Protection Rating: IP67 (excluding shaft)
Application: CNC machinery, conveyors, industrial robots
