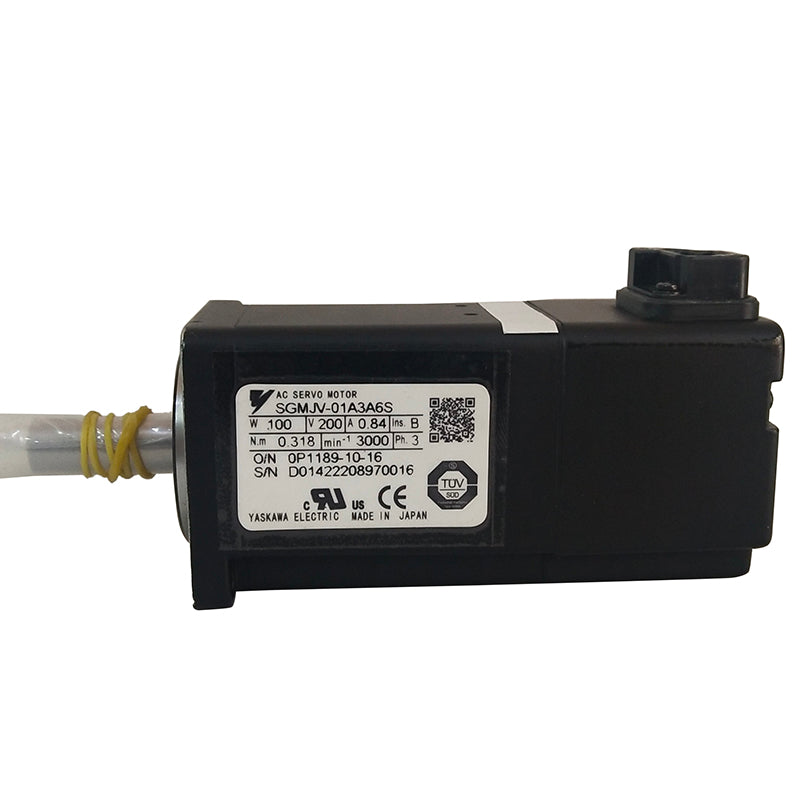

Yaskawa SGMJV-01A3A6S AC Servo Motor SGMJV01A3A6S

Description:

The Yaskawa SGMJV-01A3A6S is a 100W AC servo motor from the Sigma-5 series, engineered for high-precision and fast-response performance in compact applications. This model features a low-inertia rotor, a straight shaft with key, and a 20-bit absolute encoder for accurate feedback. It is well-suited for applications such as pick-and-place systems, robotics, and compact automation machinery.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: SGMJV-01A3A6S
Series: Sigma-5
Type: AC Servo Motor
Rated Power: 100W
Rated Voltage: 200V AC
Rated Speed: 3000 RPM
Maximum Speed: 6000 RPM
Rated Torque: 0.318 Nm
Peak Torque: ~0.95 Nm
Encoder: 20-bit absolute encoder
Shaft Type: Straight shaft with key
Mounting: Flange
Brake: No
Protection Rating: IP67 (motor body)
Application: Robotics, semiconductor handling, precision automation
