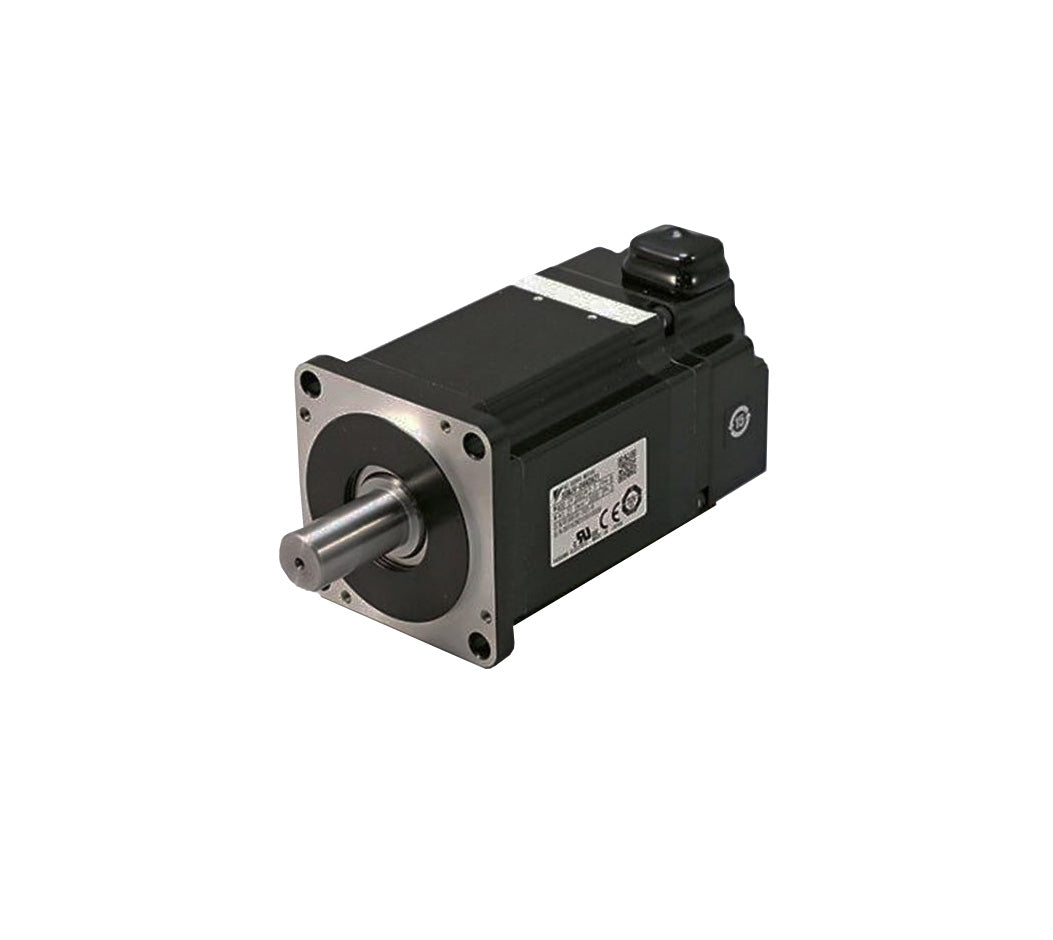

Yaskawa SGMJV-01ADA21 Servo Motor SGMJV01ADA21

Description:

The Yaskawa SGMJV-01ADA21 is a compact 100W servo motor from the Sigma-5 series, designed for precision motion control in space-constrained applications. Featuring a 200V wind, 13-bit incremental encoder, and a low-inertia rotor, it delivers fast response and accurate positioning. Ideal for applications such as semiconductor tools, electronic assembly, and small automation equipment.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: SGMJV-01ADA21
Series: Sigma-5
Type: AC Servo Motor
Rated Power: 100W
Rated Voltage: 200V AC
Rated Speed: 3,000 RPM
Maximum Speed: 6,000 RPM
Rated Torque: 0.32 Nm
Peak Torque: ~0.96 Nm
Encoder: 13-bit Incremental
Inertia: Low inertia design
Brake: None
Shaft: Straight with key
Mounting: Flange
Protection: IP55
Application: High-speed automation, small robotics, pick-and-place systems
